Waterway Viper Pump 5HP 230V 2 Speed 56 Frame 2.5 Inch Inlet Outlet OEM
$499.99
Waterway Viper Pump 5HP 230V 2 Speed 56 Frame 2.5 Inch Inlet Outlet OEM is backordered and will ship as soon as it is back in stock.
5 In Stock
Couldn't load pickup availability
Description
Description

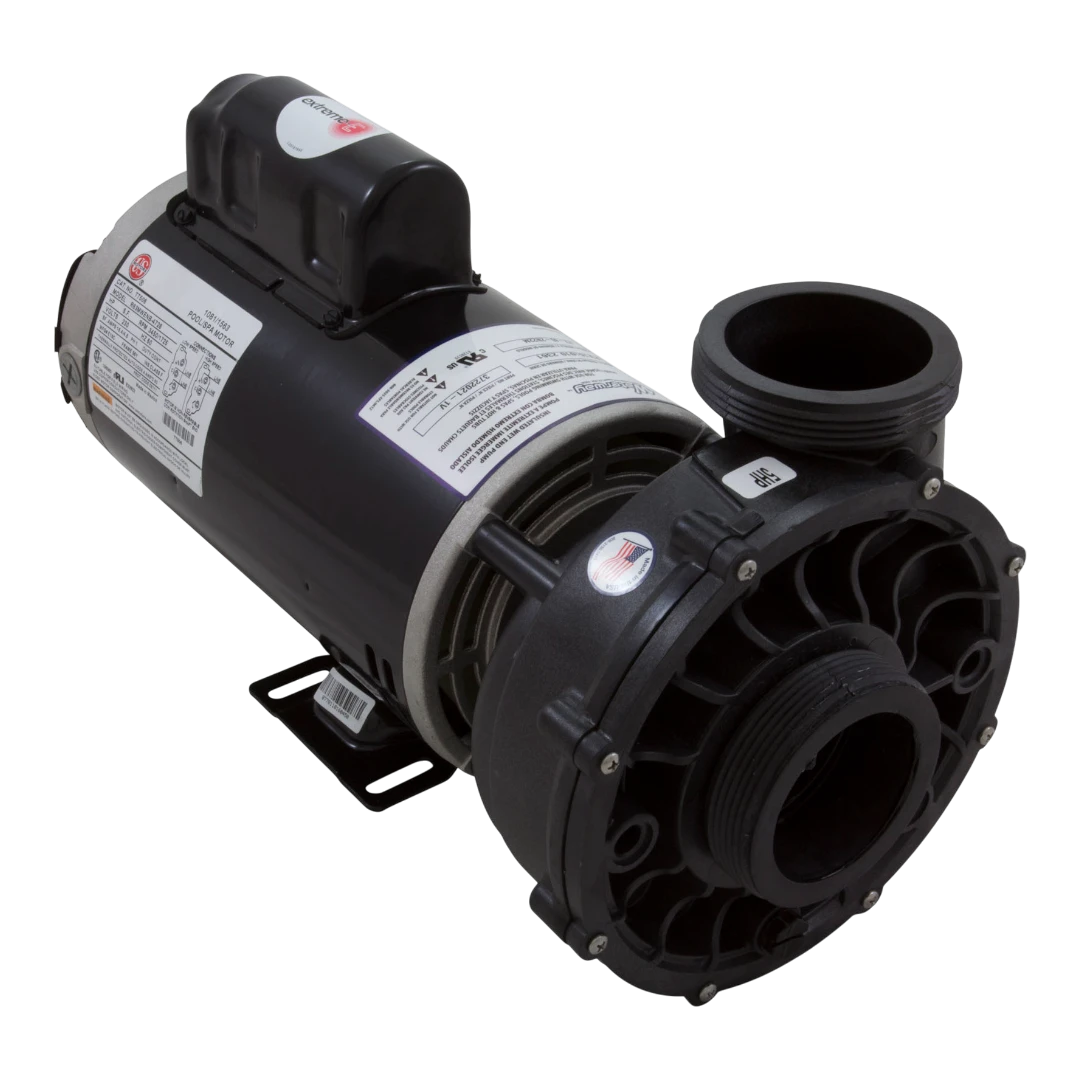

The Waterway Viper Pump 3722021-1V is a high-performance spa pump designed to deliver exceptional power and efficiency for your spa or hot tub system. With its innovative design and durable construction, the Viper Pump ensures optimal water circulation and reliable performance.
- Powerful Performance: High-flow design for efficient water circulation and superior spa operation.
- Durable Construction: Made with corrosion-resistant, high-quality materials for long-lasting use.
- 2-Speed Operation: Offers flexibility with high and low-speed settings to meet varying water flow needs.
- Energy Efficient: Designed to provide powerful performance while minimizing energy consumption.
- 56-Frame Motor: Equipped with a robust and reliable motor for quiet and efficient operation.
- Easy Installation: Engineered for seamless integration into most spa systems.
Upgrade your spa with the Waterway Viper Pump 3722021-1V, a trusted solution for enhancing water circulation, ensuring relaxation, and maintaining a clean, well-balanced spa environment.
305645 , 3721021-1V , 3722021 , 3722021-1V , 3M22021 , 5175-305 , R63MWENB-4728
Specifications
Specifications
| Model Number | 3722021-1V |
| Brand | Waterway |
| Series | Viper |
| Frame Size | 56-Frame |
| Horsepower | 5.0 HP |
| Voltage | 230V |
| Speed | 2-Speed |
| Amperage | High Speed: 16.4A, Low Speed: 4.8A |
| Suction Size | 2.5 inches |
| Discharge Size | 2.5 inches |
| Motor Type | Dual Speed with four sets of insulated windings for increased efficiency |
| Pump Design | Viper wet end designed specifically for 56-frame motors |
| Bearings | Two double shielded ball bearings with moisture-resistant grease for quieter operation and longer life |
| Thermal Protection | Yes, thermally protected to extend motor life |
| Seal Type | Viton seals for enhanced durability |
| Wet End Orientation | Highly versatile; can be rotated every 90 degrees |
| Dimensions | Approximately 9.08" H x 8.05" W x 15.72" L |
| Weight | Approximately 48 lbs |
| Warranty | Refer to manufacturer for details |
| Model Number | 3722021-1V |
| Brand | Waterway |
| Series | Viper |
| Frame Size | 56-Frame |
| Horsepower | 5.0 HP |
| Voltage | 230V |
| Speed | 2-Speed |
| Amperage | High Speed: 16.4A, Low Speed: 4.8A |
| Suction Size | 2.5 inches |
| Discharge Size | 2.5 inches |
| Motor Type | Dual Speed with four sets of insulated windings for increased efficiency |
| Pump Design | Viper wet end designed specifically for 56-frame motors |
| Bearings | Two double shielded ball bearings with moisture-resistant grease for quieter operation and longer life |
| Thermal Protection | Yes, thermally protected to extend motor life |
| Seal Type | Viton seals for enhanced durability |
| Wet End Orientation | Highly versatile; can be rotated every 90 degrees |
| Dimensions | Approximately 9.08" H x 8.05" W x 15.72" L |
| Weight | Approximately 48 lbs |
| Warranty | Refer to manufacturer for details |
