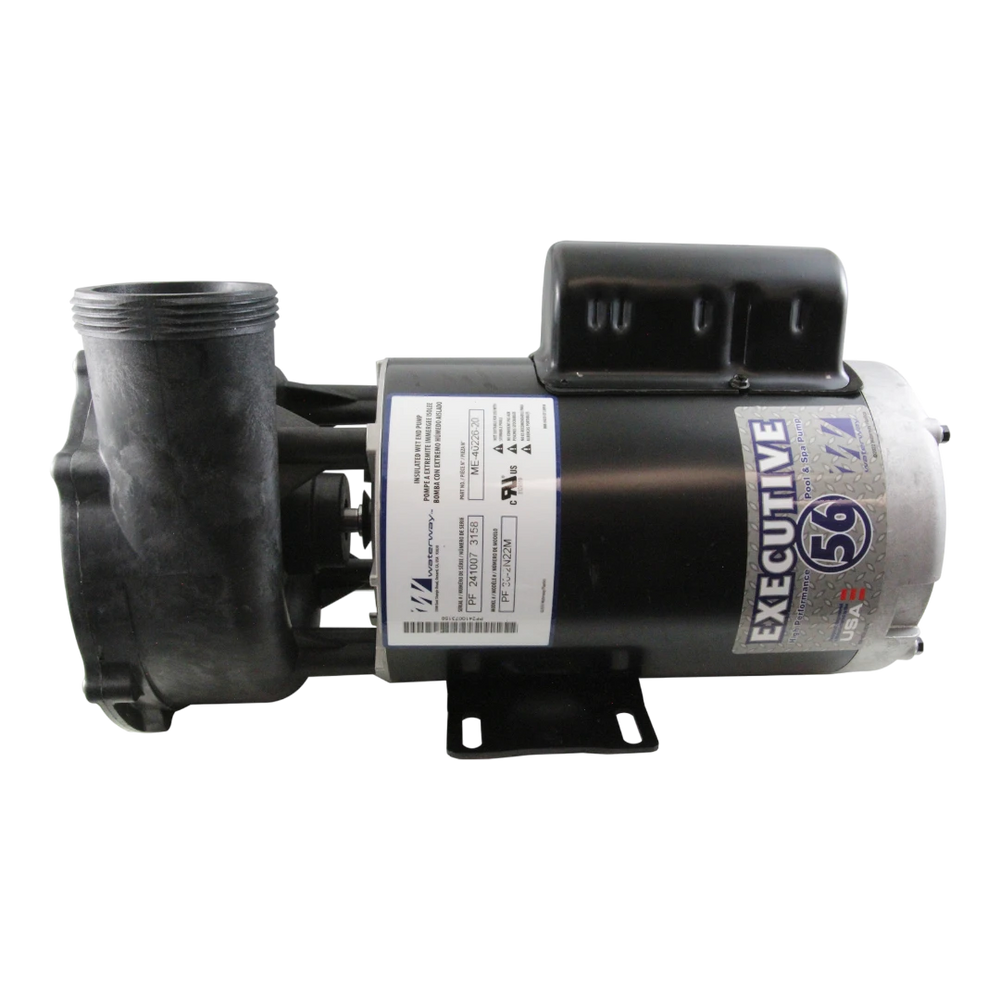

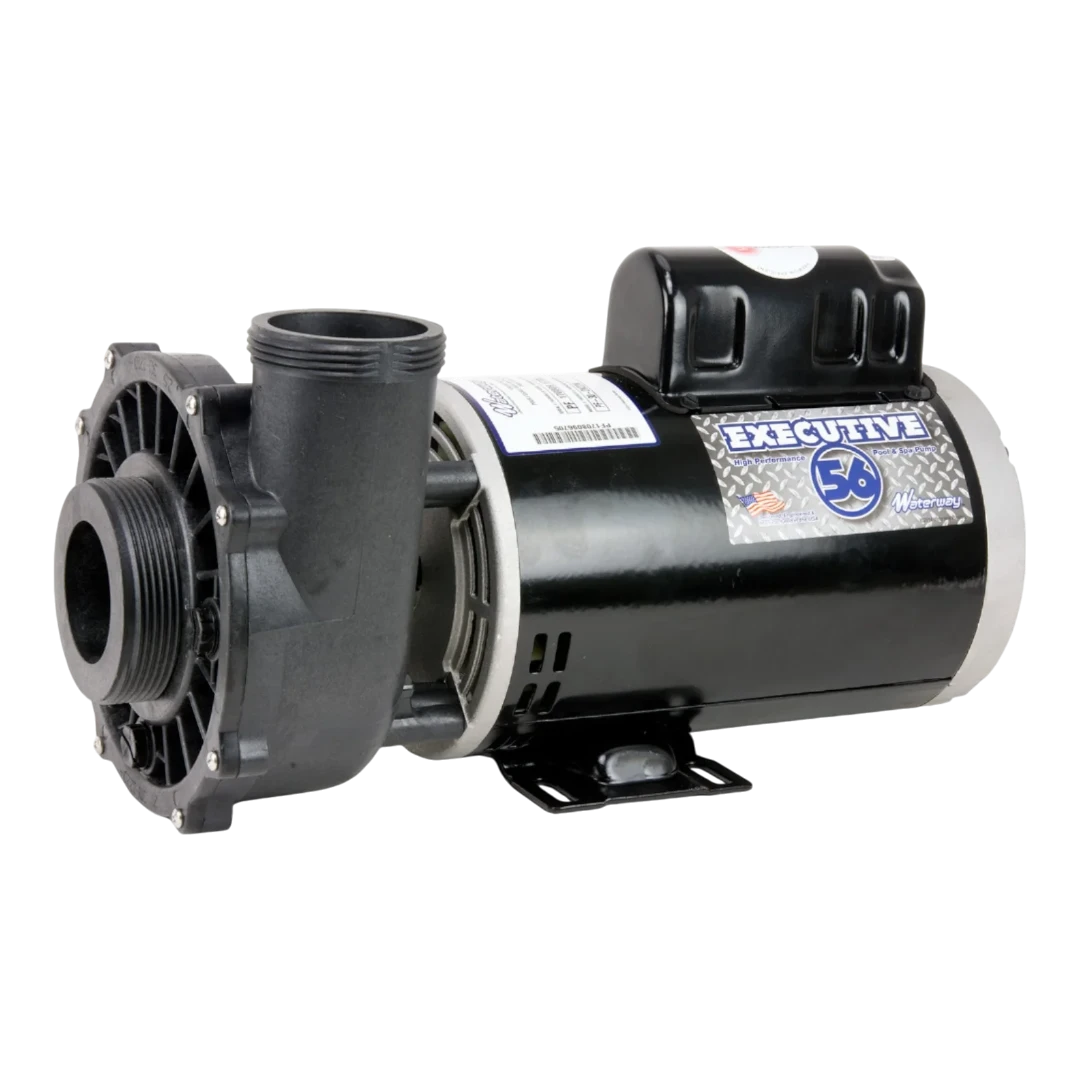

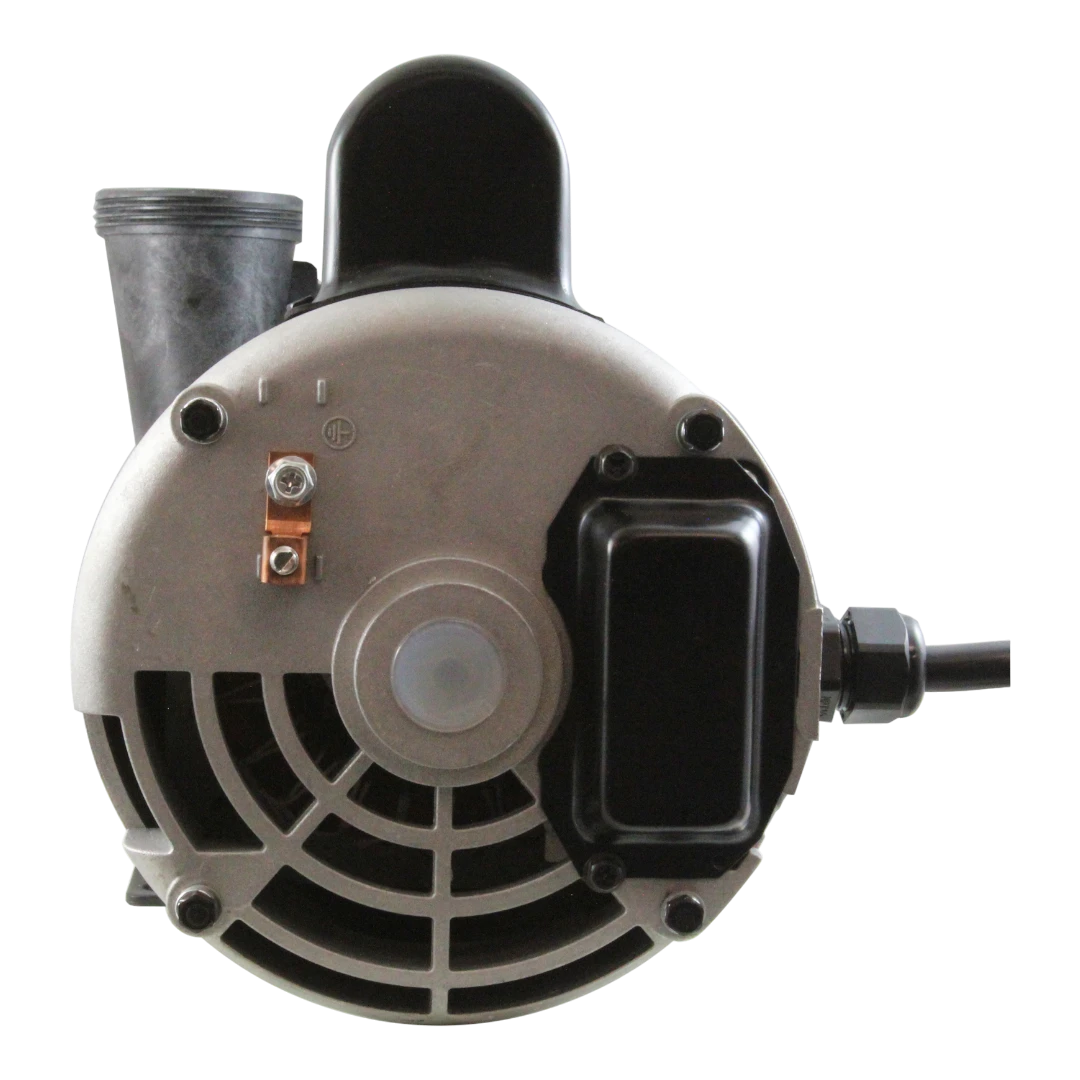

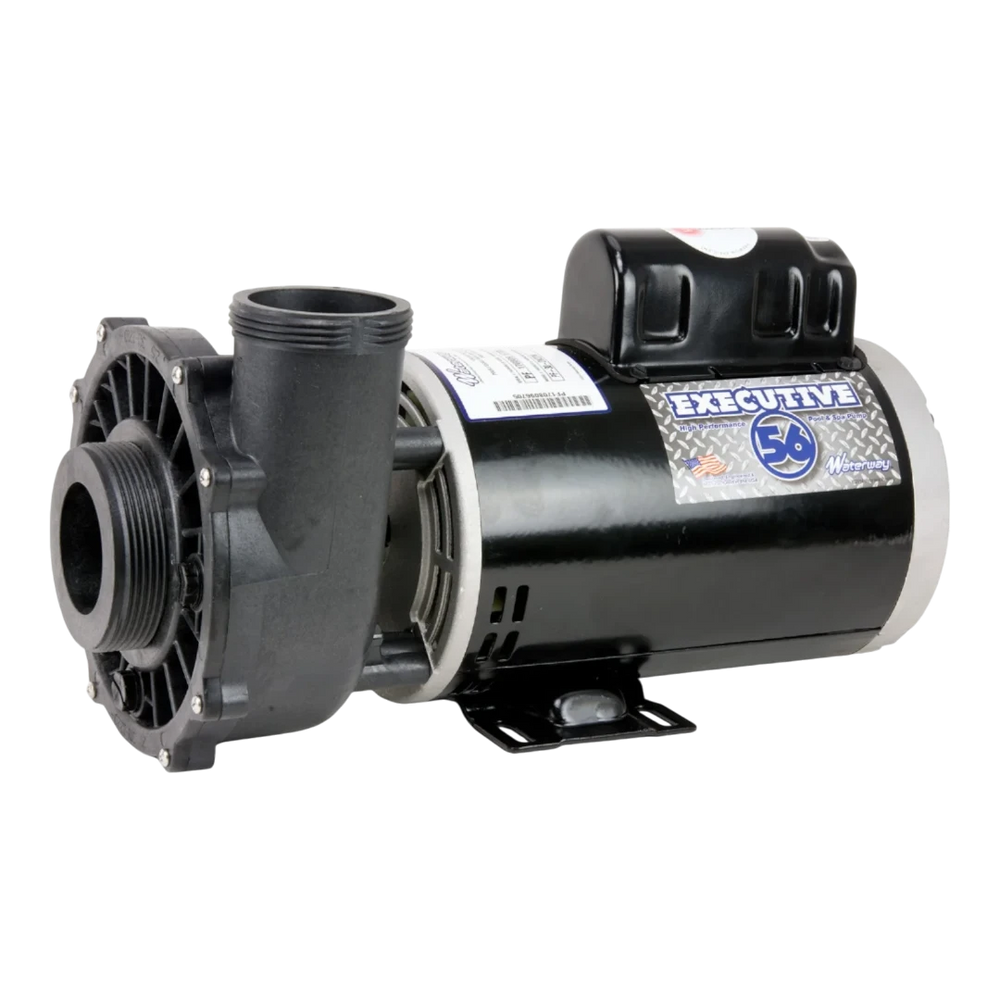

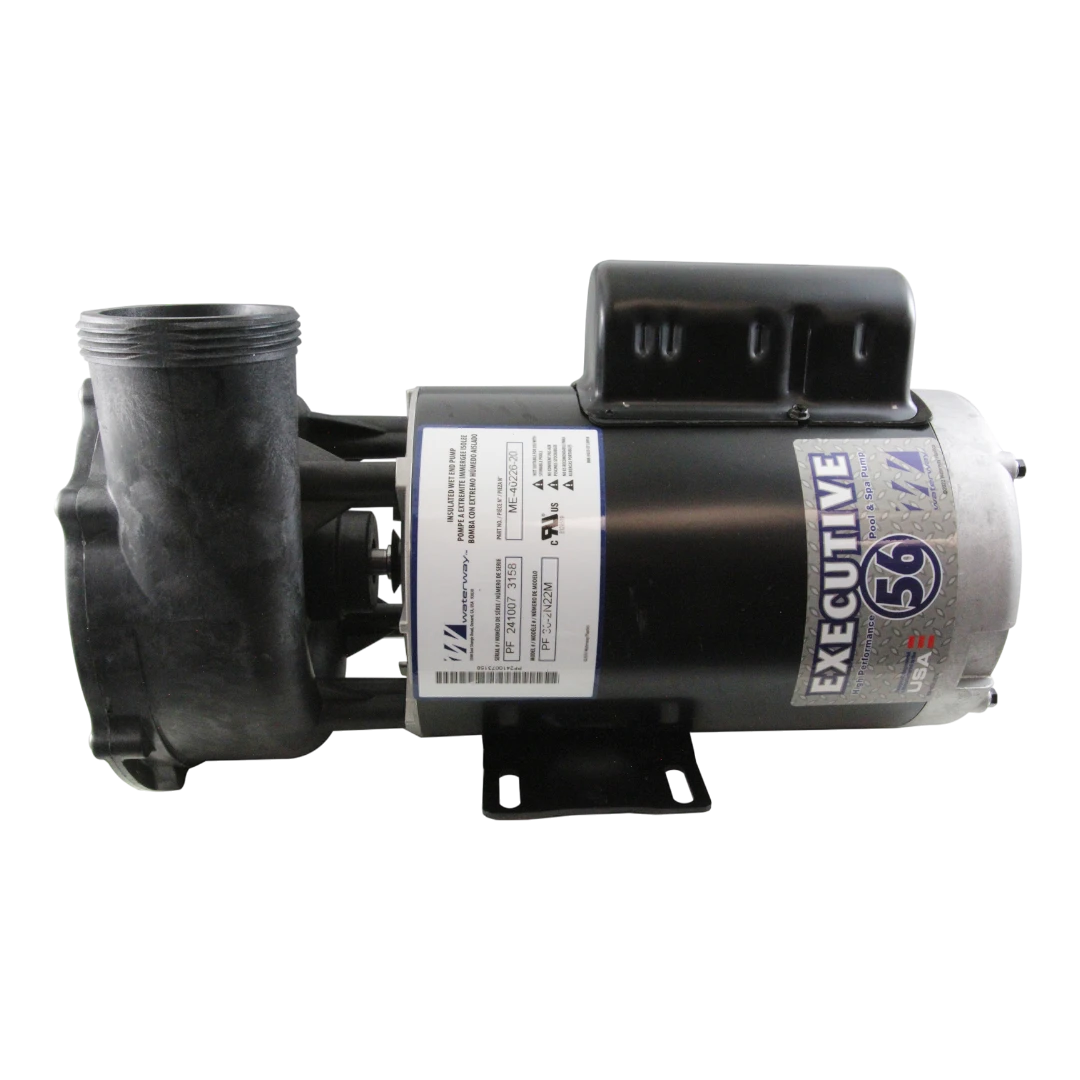

Waterway Executive 56 Spa Pump - 4HP - 230V
Waterway | SKU:
ME-40226-20
$379.00
$400.00
Unit price
/
Unavailable
Waterway Executive 56 Spa Pump - 4HP - 230V is backordered and will ship as soon as it is back in stock.
6 In Stock
Couldn't load pickup availability
Description
Description
The Waterway Executive 56 4HP Dual-Speed Spa Pump is engineered to deliver robust performance and reliability for spa and hot tub applications. Its 56-frame construction ensures enhanced strength and a cooler operating temperature, contributing to an extended motor lifespan.
Key Features:
- Dual-Speed Operation: Offers both high and low-speed settings, providing flexibility for various spa functions such as jet propulsion and filtration.
- 56-Frame Motor: Designed for increased durability and efficient cooling, resulting in longer motor life.

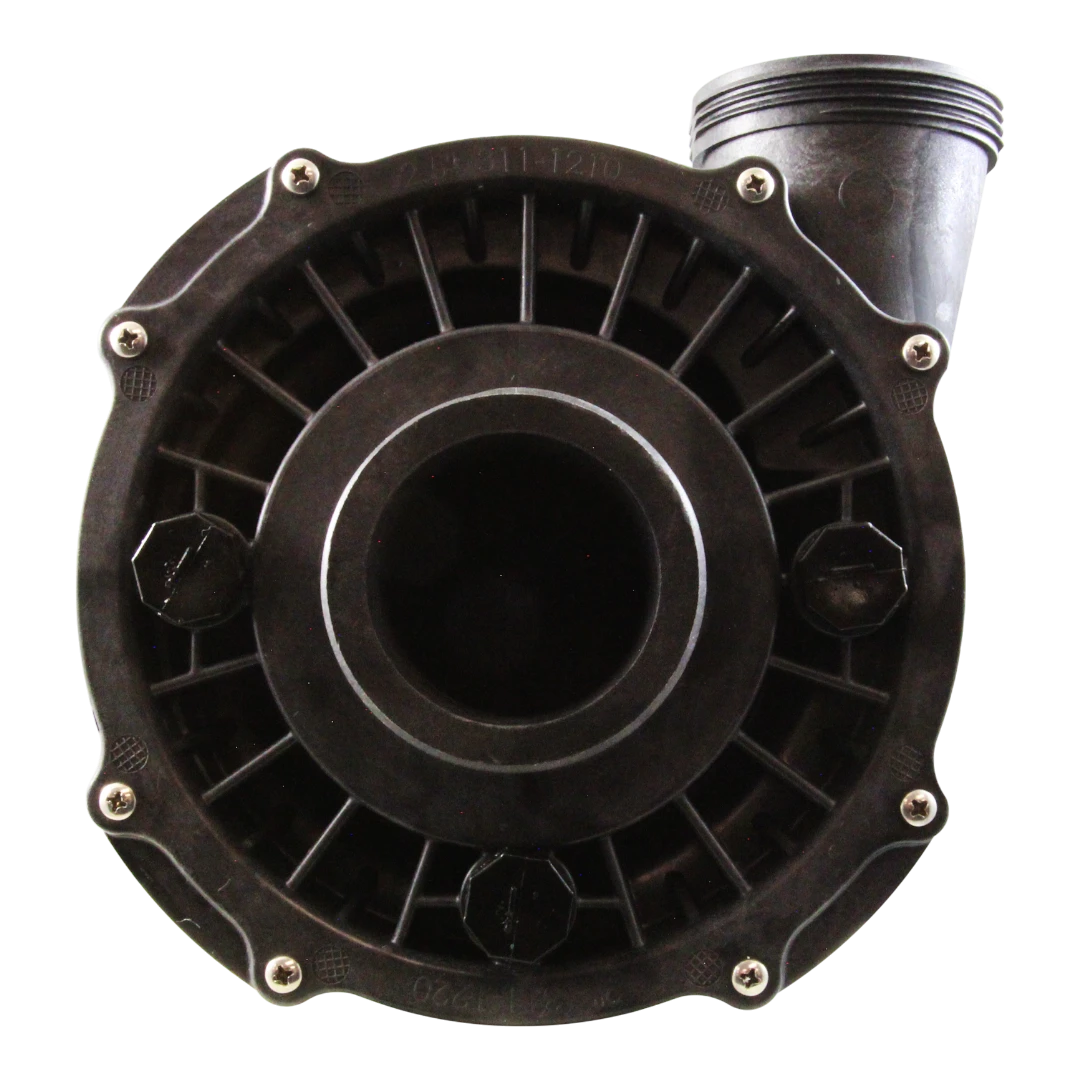

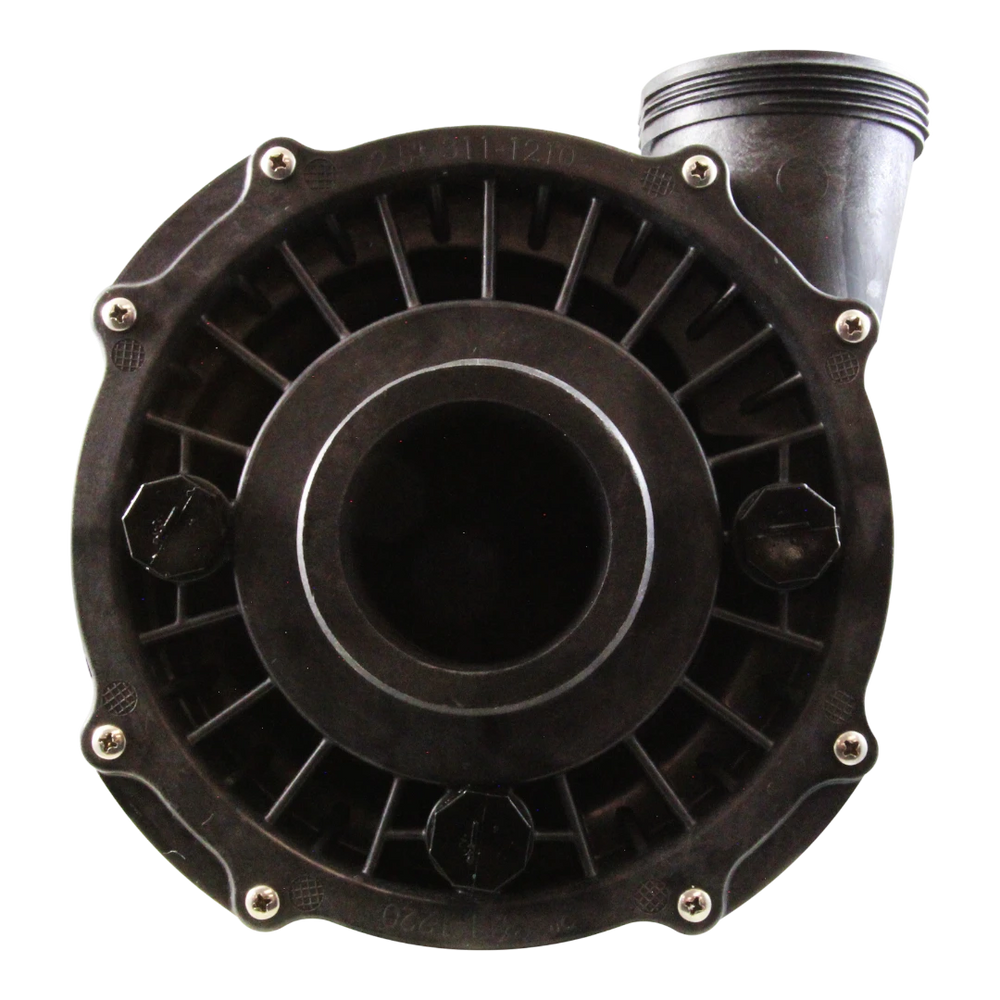

- Large Wet End: Equipped with a 6.5-inch diameter wet end, delivering higher head pressure for improved water flow.
- 2-Inch Intake and Discharge: Features 2-inch intake and discharge ports (actual outer diameter approximately 3 inches), enhancing flow performance and reducing operational noise.
- Rotatable Wet End: The wet end can be rotated in 90-degree increments, allowing for versatile installation configurations.
- Viton Seals: Utilizes Viton seals for increased chemical resistance and durability.
Specifications
Specifications
Pump Flow Curve and Data Sheet: 4HP Waterway Executive

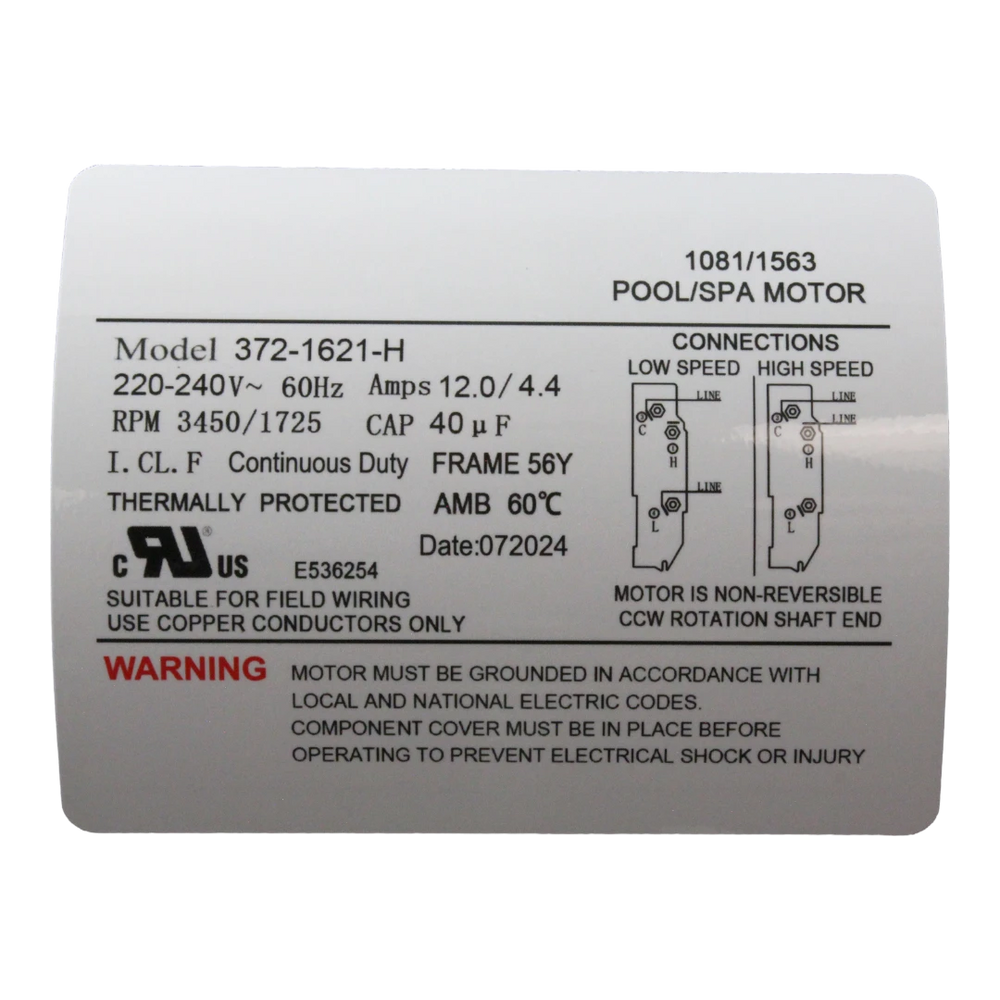

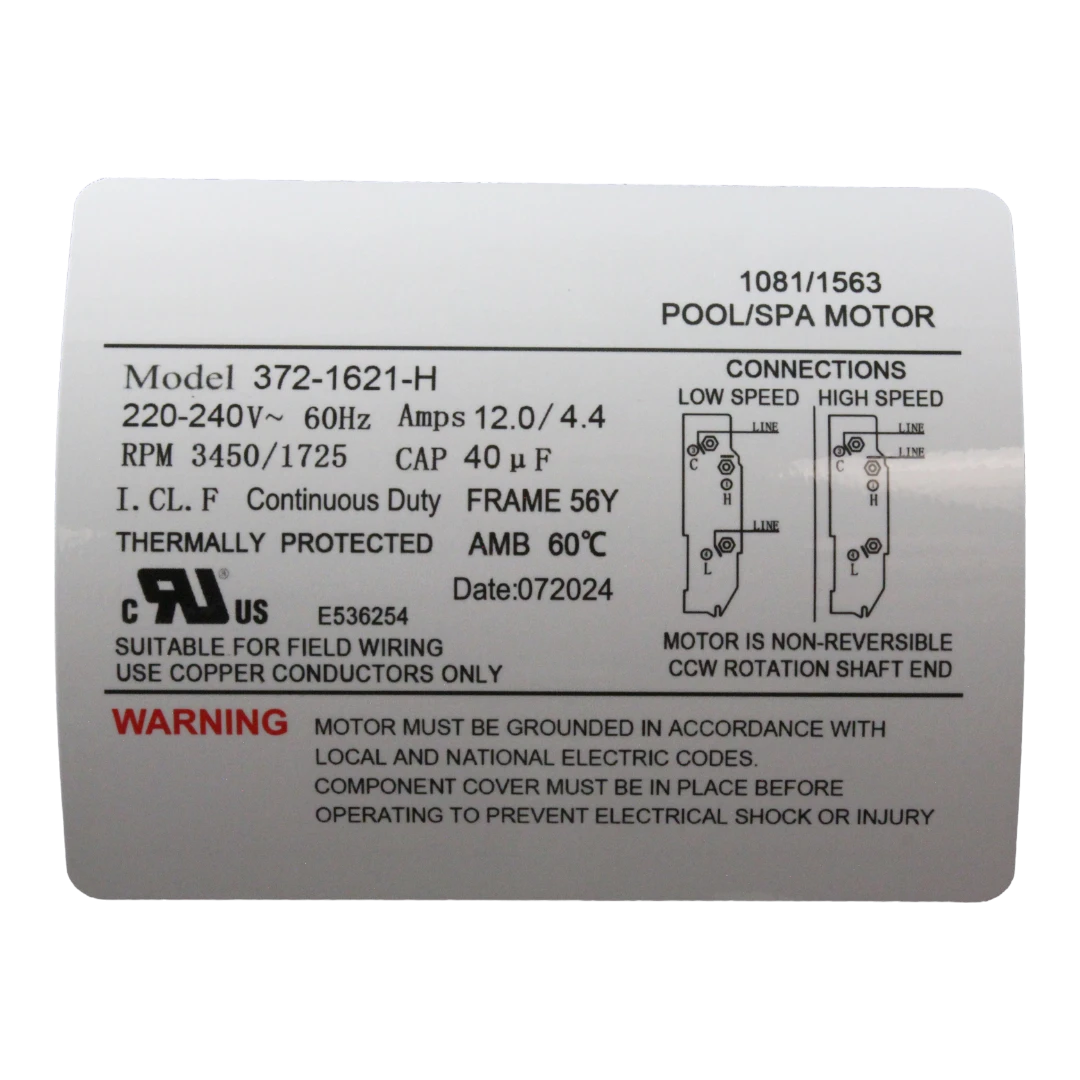

| Horsepower | 4.0 HP |
| Voltage | 230V |
| Amperage | 12.0A (High Speed), 4.4A (Low Speed) |
| Frequency | 60 Hz |
| Frame Size | 56Y |
| Intake Size | 2-inch Male Buttress Thread (3-inch OD) |
| Discharge Size | 2-inch Male Buttress Thread (3-inch OD) |
| Wet End Diameter | 6.5 inches |
| Dimensions | 9.08 x 8.05 x 14.775 inches |
| Thermal Protection | Yes |
| Energy Efficiency | Split capacitor for reduced energy consumption |
| Water Resistance | Yes |
| Noise Level | Quiet operation with double-shielded ball bearings |
| Warranty | 1 year |
| Shipping Dimensions | 11 x 20 x 11 inch |
| Product Weight | 40 pound |
| Horsepower | 4.0 HP |
| Voltage | 230V |
| Amperage | 12.0A (High Speed), 4.4A (Low Speed) |
| Frequency | 60 Hz |
| Frame Size | 56Y |
| Intake Size | 2-inch Male Buttress Thread (3-inch OD) |
| Discharge Size | 2-inch Male Buttress Thread (3-inch OD) |
| Wet End Diameter | 6.5 inches |
| Dimensions | 9.08 x 8.05 x 14.775 inches |
| Thermal Protection | Yes |
| Energy Efficiency | Split capacitor for reduced energy consumption |
| Water Resistance | Yes |
| Noise Level | Quiet operation with double-shielded ball bearings |
| Warranty | 1 year |
| Shipping Dimensions | 11 x 20 x 11 inch |
| Product Weight | 40 pound |
