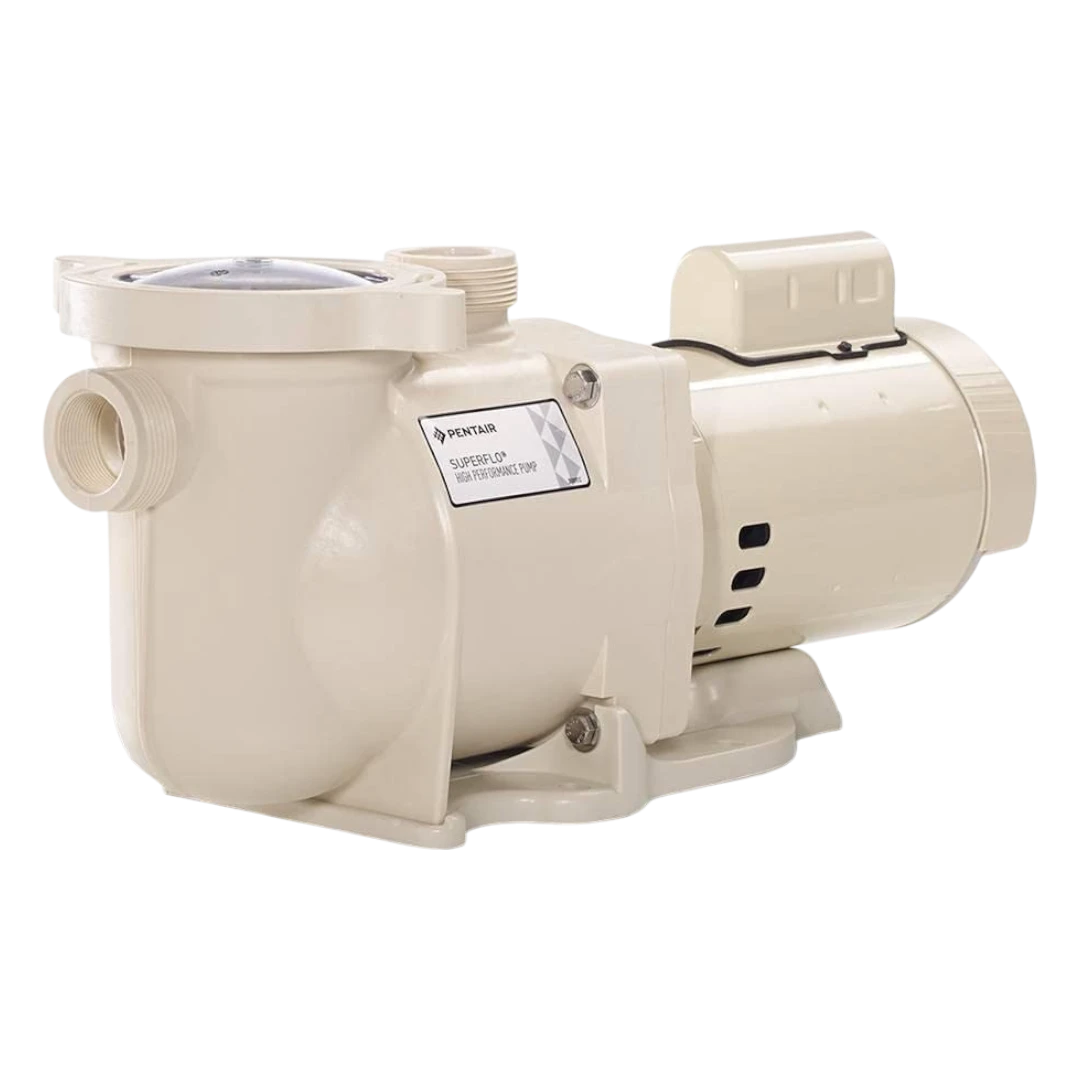

Pentair SuperFlo 1HP High Performance Pump | 115/208-230V | EC-348190

This SuperFlo High Performance EC Pump is 1 HP, 115/208-230 Volts with 1-1/2 inch connections, and features a superior hydraulic design and thick-walled body parts deliveriing a super-quiet operation. The TEFC Super-Duty motor provides more outstanding performance and longevity. The SuperFlo pump includes 1-1/2 and 2 inch unionized fittings, a see-thru lid that permits easy inspection, and Cam and Ramp lid lock.

The SuperFlo is a self-priming E-Commerce pump performance tested to ensure quality. These pumps are specifically designed to be the best choice for a variety of inground pools and they are a direct replacement for the discontinued Hayward Super Pumps. SuperFlo's silent running capability and small footprint allow it to easily drop into a compact equipment pad.

• Frequency Rating:  (Hz)60
• Horsepower:  1 horse power
• Motor Speed:  1-Speed
• Standards Approvals:  NSF Certified, UL Certified
• Voltage:  115V, 208V, 230V
• Port Size:  1.5 inch
• Thrust HP:  1.1
• Weighted Energy Factor:  (WEF)3.6

Pump Flow Curve and Data Sheet: SuperFlo® 1HP

Product Type	Pool Pump
Horsepower	1
Includes Unions	Yes
Plumbing Connection	1.5 inch internal slip, 2 inch outer slip
Thrust HP	1.1
Motor Speed	1-Speed
Voltage	115/208/230V
Weighted Energy Factor (WEF)	3.6
Shipping Dimensions	28 x 13 x 15 inch
Product Weight	53 pounds
Warranty	1-year

Owner's Manual- SuperFlo® 1HP
Data Sheet- SuperFlo® 1HP
Warranty Card- SuperFlo® 1HP

Shipping Dimensions	28 x 13 x 15 inch
Product Weight	53 pounds

This product ships free via FedEx Home Delivery, with a signature required on delivery.
