Pentair Challenger Diffuser
Pentair Challenger Diffuser is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

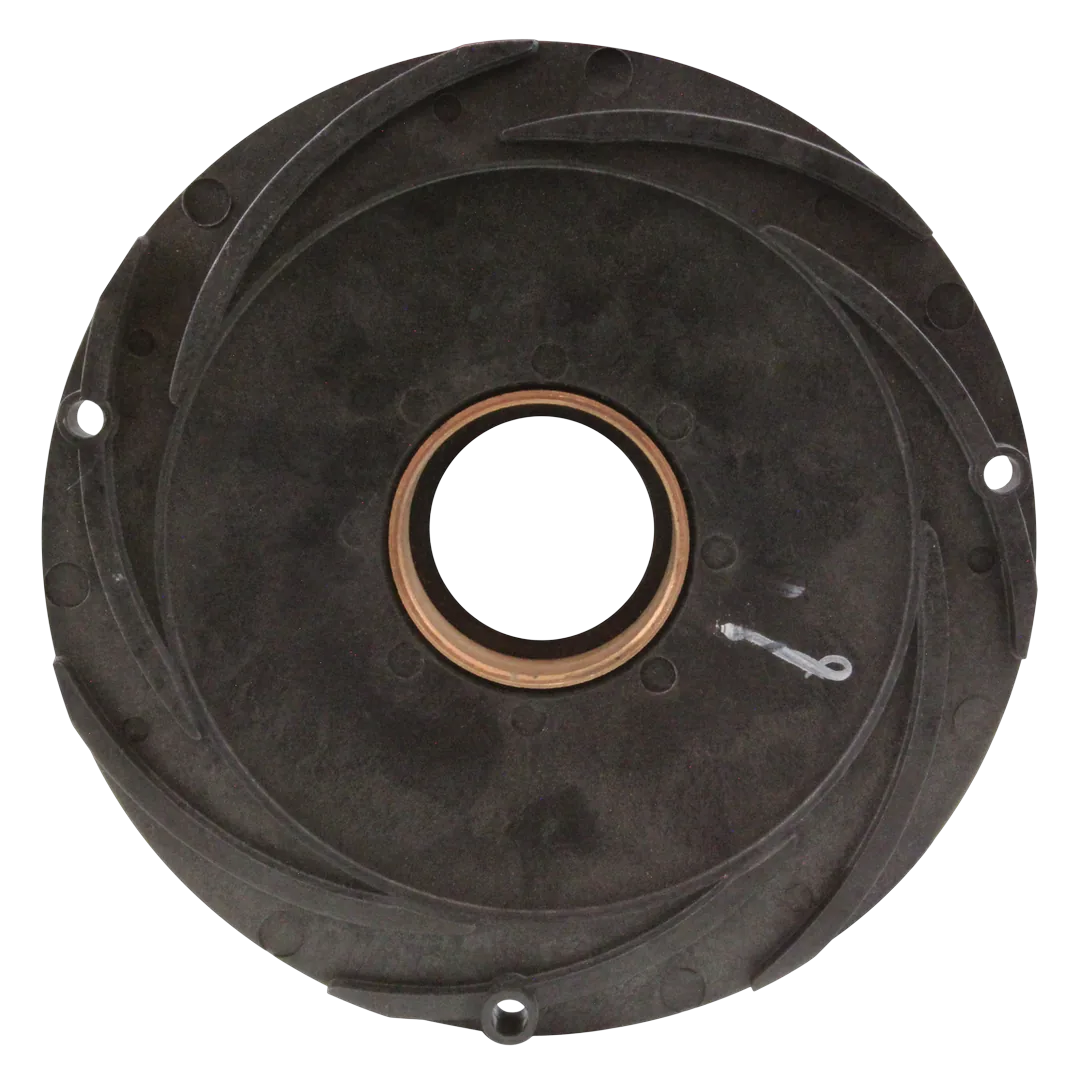

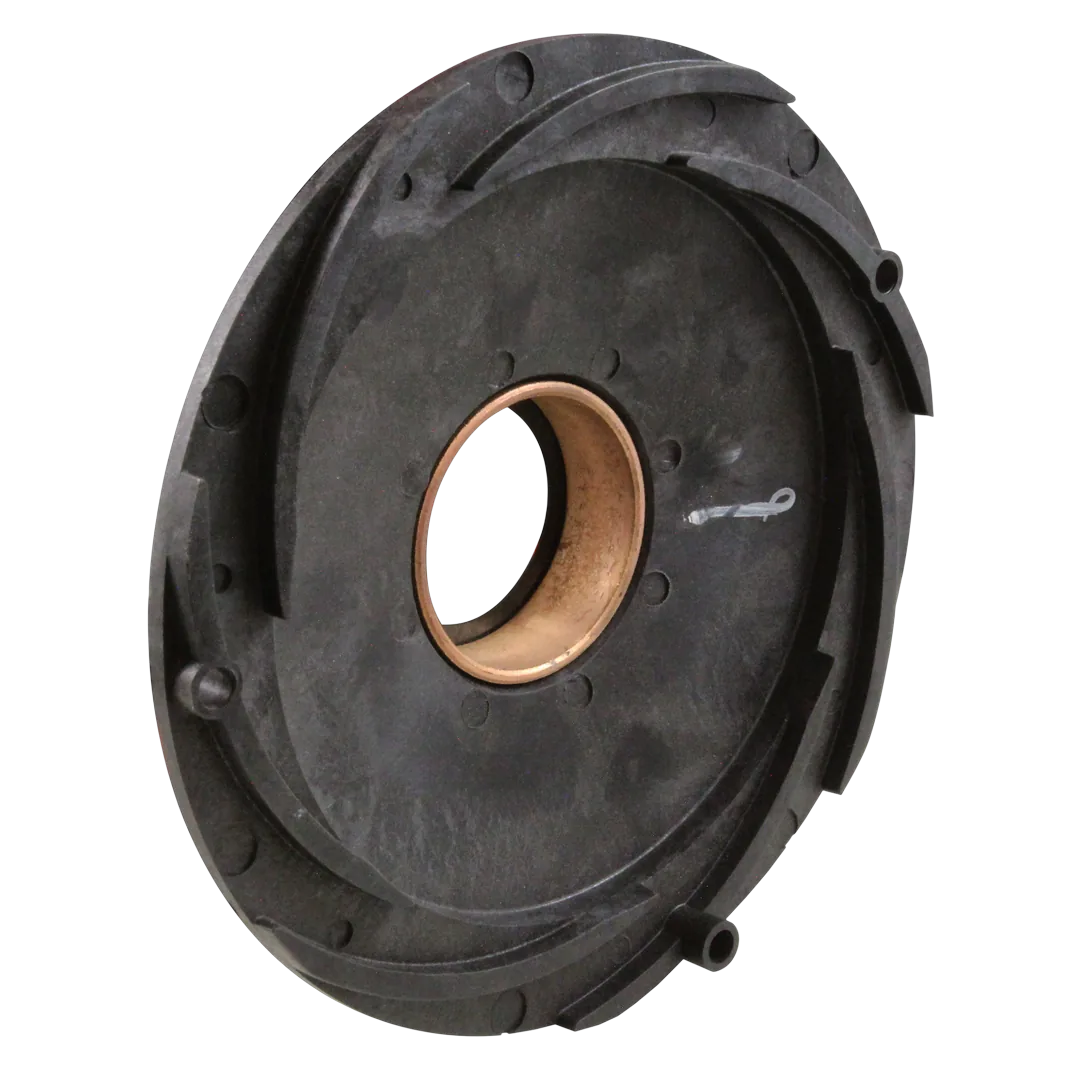

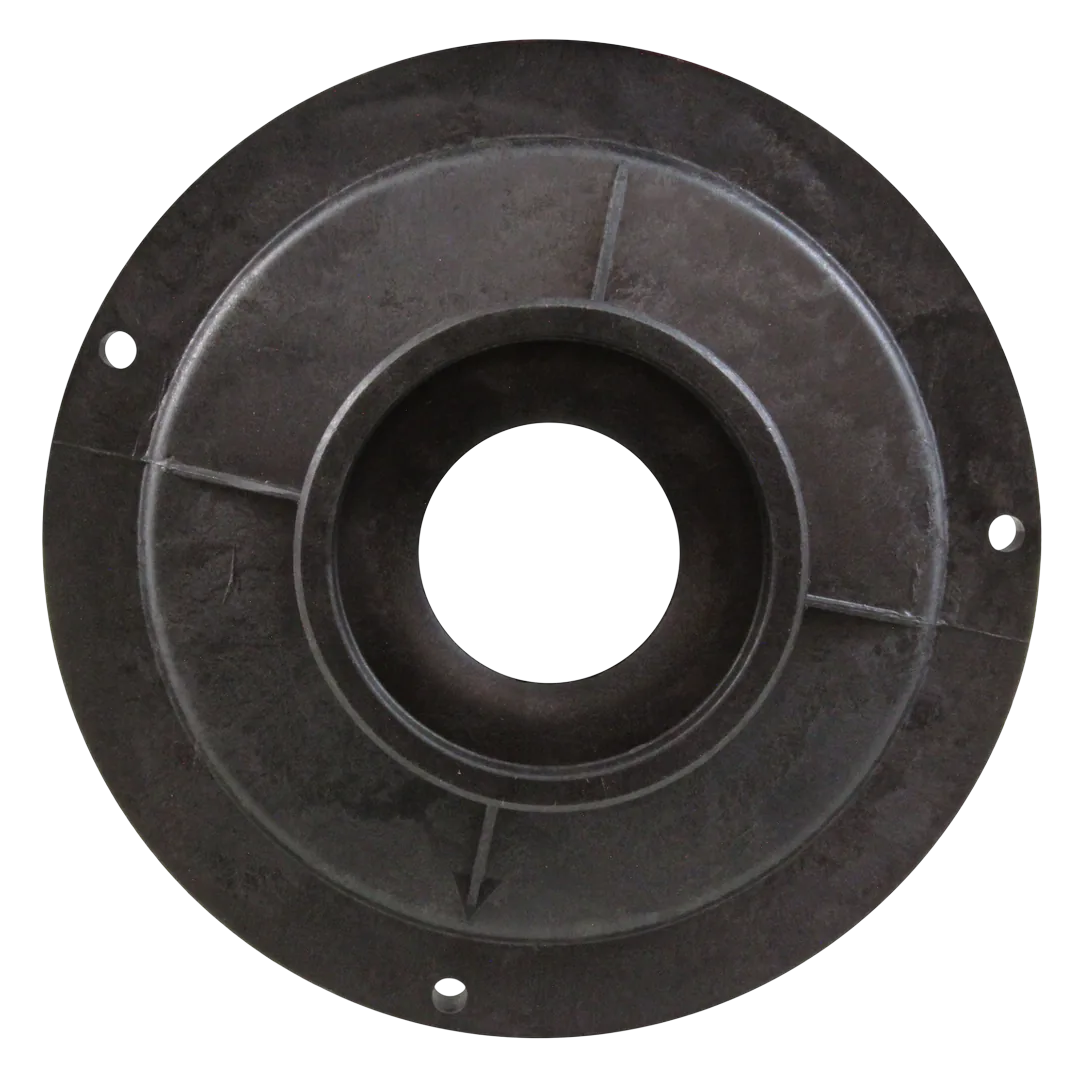

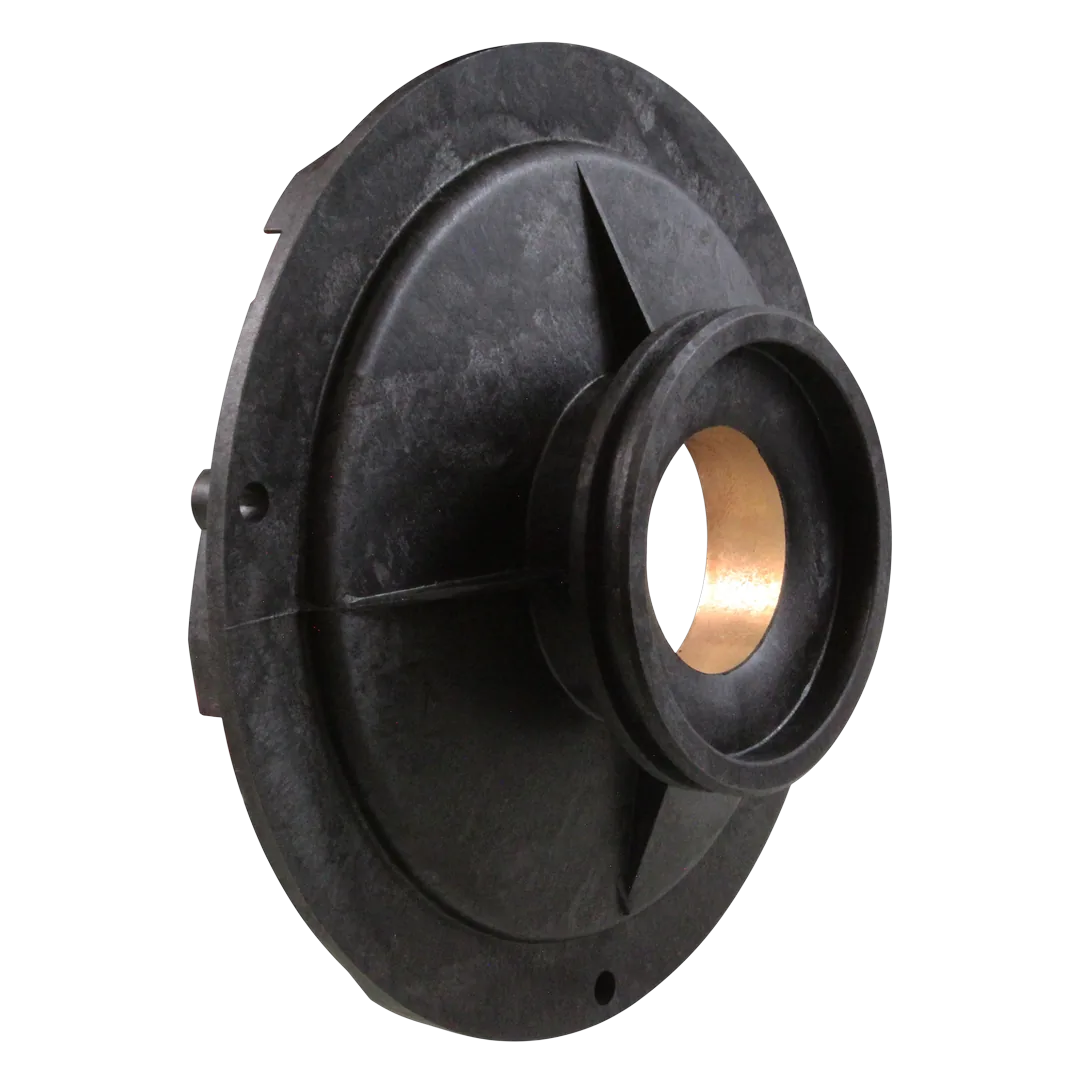

Replacement diffuser for Pentair Challenger high-pressure pumps (Pentair 355188Z), fitting 3/4 HP full-rated through 1-1/2 HP up-rated models including CHII-NI-3/4F, CHII-NI-1F, CHII-NI-1A, and CHII-NI-1-1/2A. It channels water off the impeller to build discharge pressure and restore flow when the original diffuser is cracked or worn. This OEM piece cross-references 355188 and 35-5188; match it with the corresponding Challenger impeller for these HP ranges.
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Pentair 355188Z Diffuser |
| Part Number | 355188Z |
| Part Type | Diffuser |
| Compatibility | Pentair Challenger High Pressure Pumps, 3/4 HP Full Rated to 1-1/2 HP Up Rated models |
| Substitute Part Numbers | 355188 |
| Material | Thermoplastic |
| Shipping Dimensions | 2.75 x 5.25 x 5.25 inch |
| Product Weight | 0.45 pound |
Find it on the parts diagram
Pentair PacFab Challenger High Pressure Pump Replacement Parts
Show it on the diagram →
