Pentair 26" Sand Dollar® Top Mount Filter EC-145333
Pentair | SKU:
EC-145333
$62900
/ea
Unit price
/
Unavailable
Pentair 26" Sand Dollar® Top Mount Filter EC-145333 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

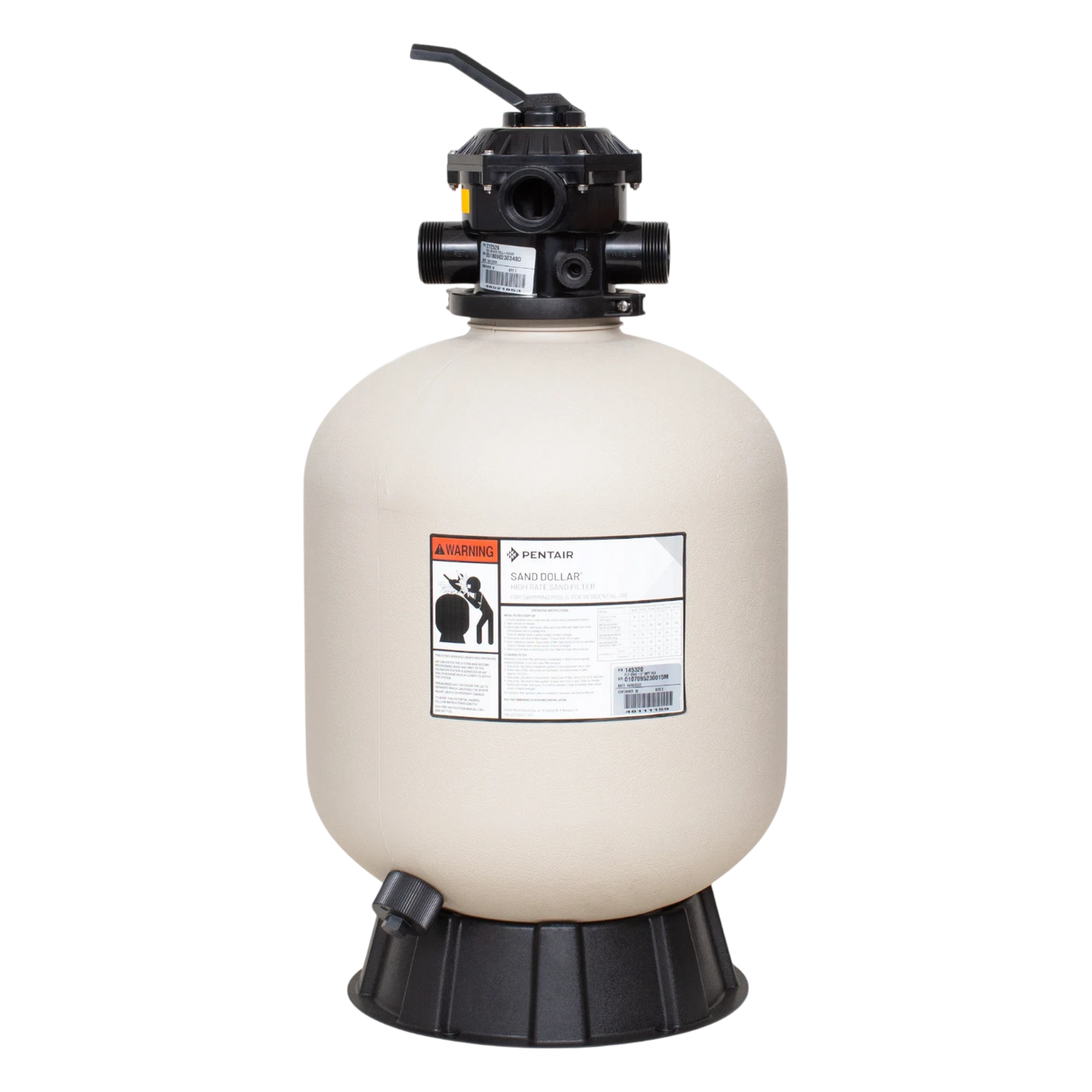

Pentair Sand Dollar® EC-145333 Top Mount Sand Filter 26" 1.5" MPV

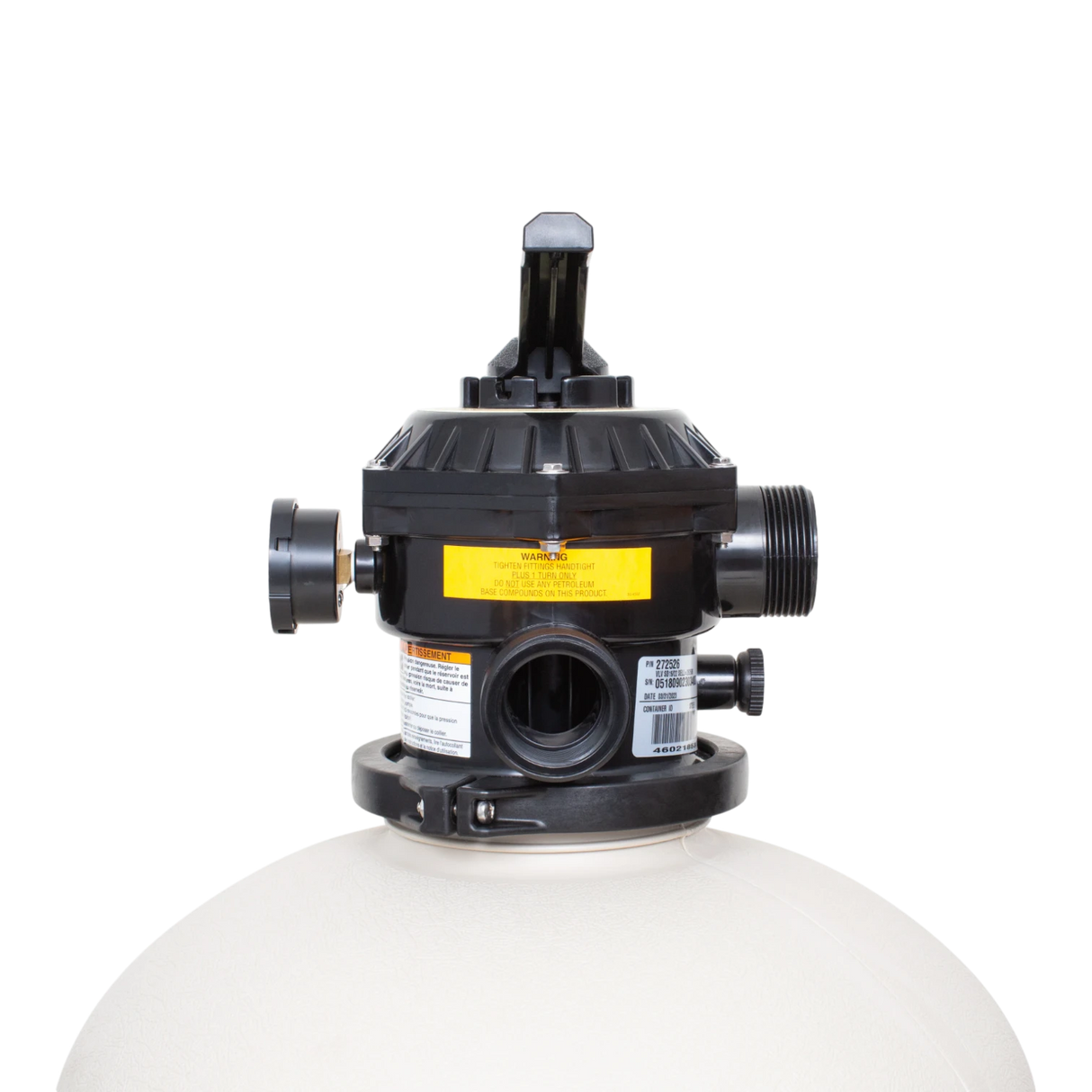

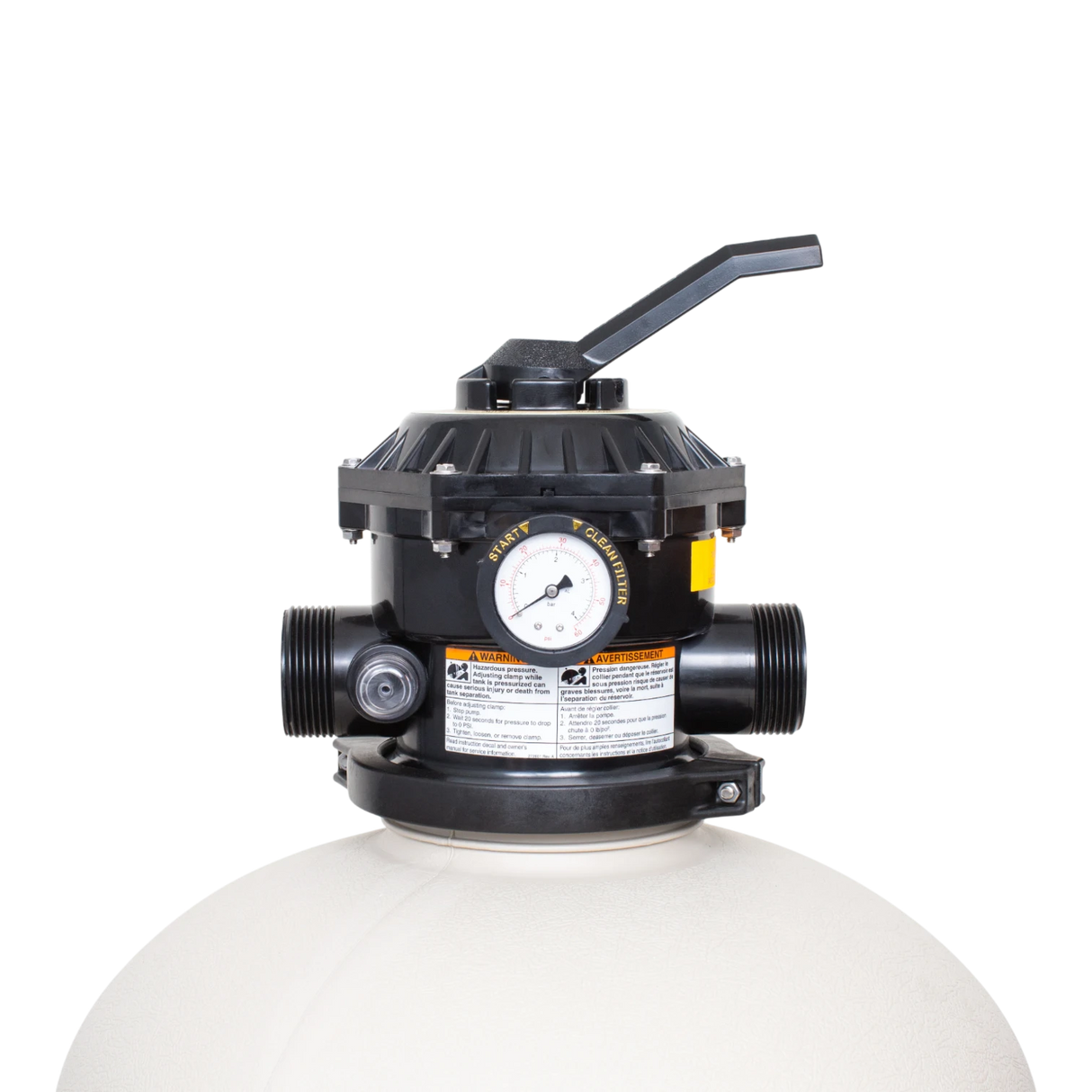

The Sand Dollar® Top Mount Filter features a clamp style, six-position multiport valve. Special lateral design provides superior flow characteristics and long filter cycles for economical operation.
26" Sand Dollar Specifications:
- Filtration Area: 3.5 square feet
- Material: Thermoplastic
- Maximum Flow Rate: 75 gal/min
- Maximum Working Pressure:, 50 pounds per square inch
- Product Height: 48.75 inch
- Product Width: 26 inch
- Sand Required: 350 pound
- Tank Material: Thermoplastic
- Turnover 10hrs: 45000 gallon
- Turnover 12hrs: 54000 gallon
- Turnover 8hrs: 36000 gallon
-
Vertical Clearance: 74 inch
Additional Information
Technical Specs
Valve Type
Top-Mount Multiport (Clamp)
Sand Required
350 pound
Design Flow Rate
75 gal/min
Maximum Working Pressure
50 PSI
Filtration Area
3.5 square feet
Product Height
48.75 inch
Product Width
26 inch
Vertical Clearance
74 inch
Shipping Dimensions
26.5 x 27 x 47 inch
Product Weight
44 pound
This product ships free via FedEx Home Delivery.
Resources
User Manual
Highlights

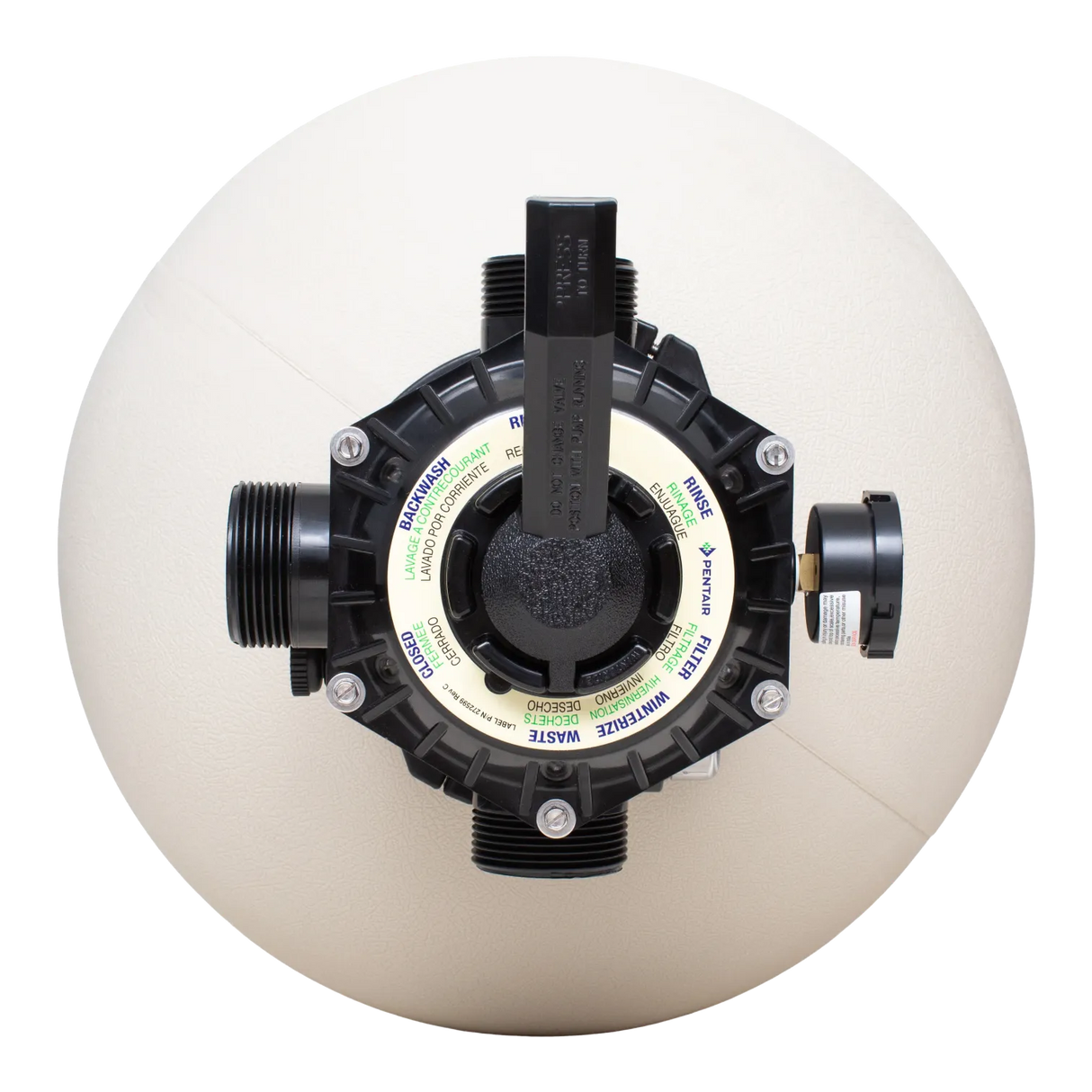

- Six-position, top-mounted multiport valve
- Combination water and sand drain makes servicing and winterizing fast and easy
- One-piece thermoplastic tank for strength and corrosion resistance
