Pentair 22" Sand Dollar® Top Mount Filter EC-145322
Pentair | SKU:
EC-145322
$56900
/ea
Unit price
/
Unavailable
Pentair 22" Sand Dollar® Top Mount Filter EC-145322 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

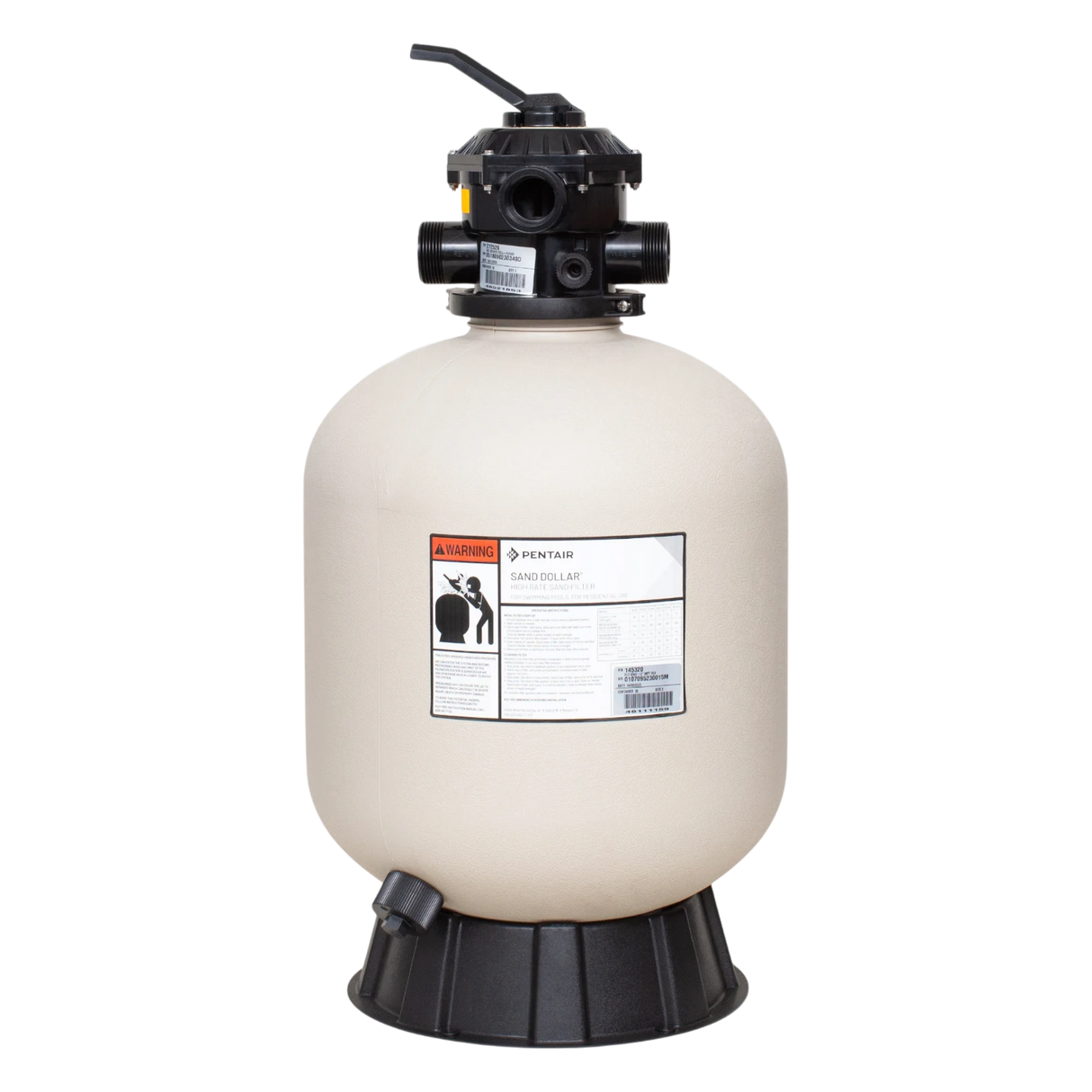

Pentair Sand Dollar® EC-145322 Top Mount Sand Filter 22.5" 1.5" MPV

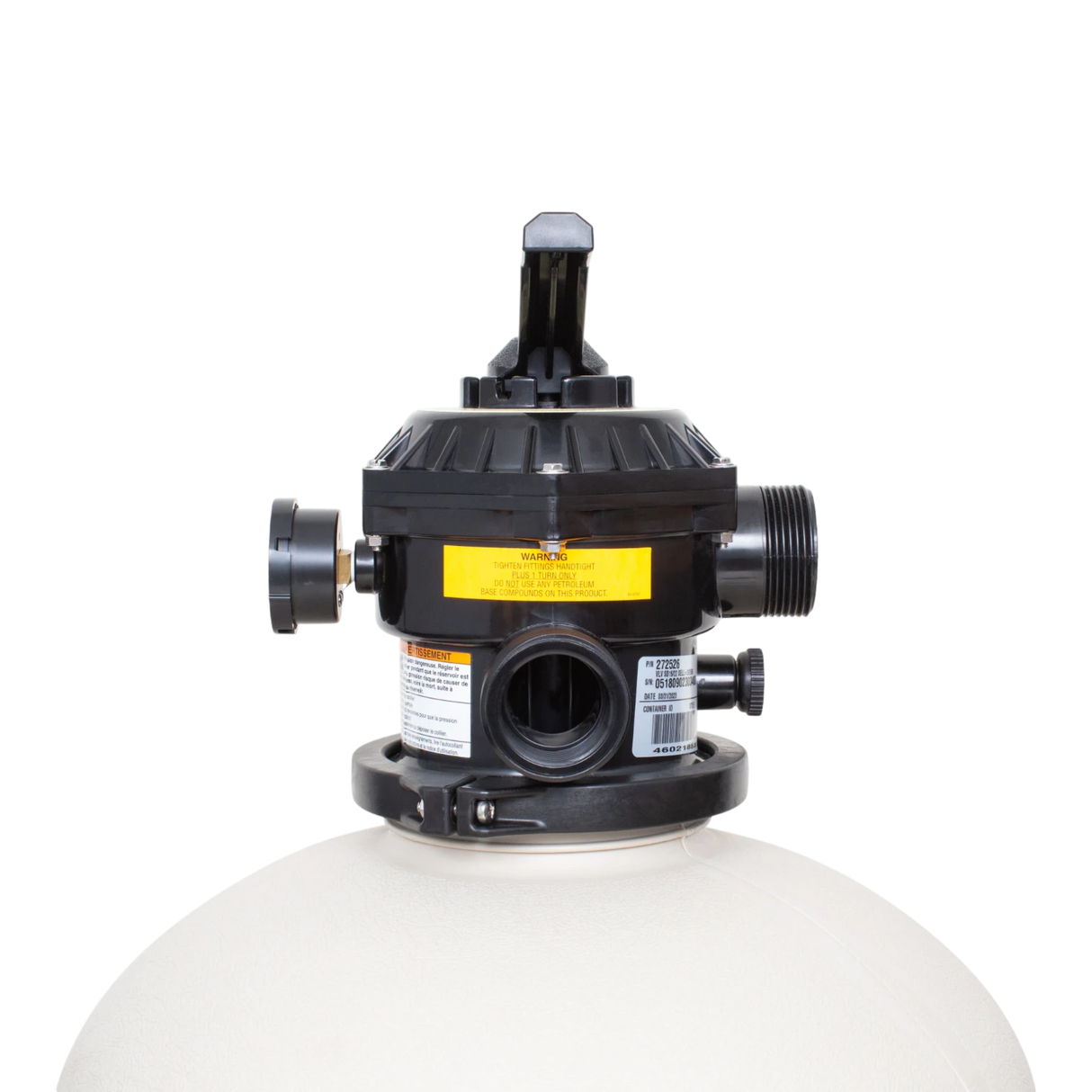

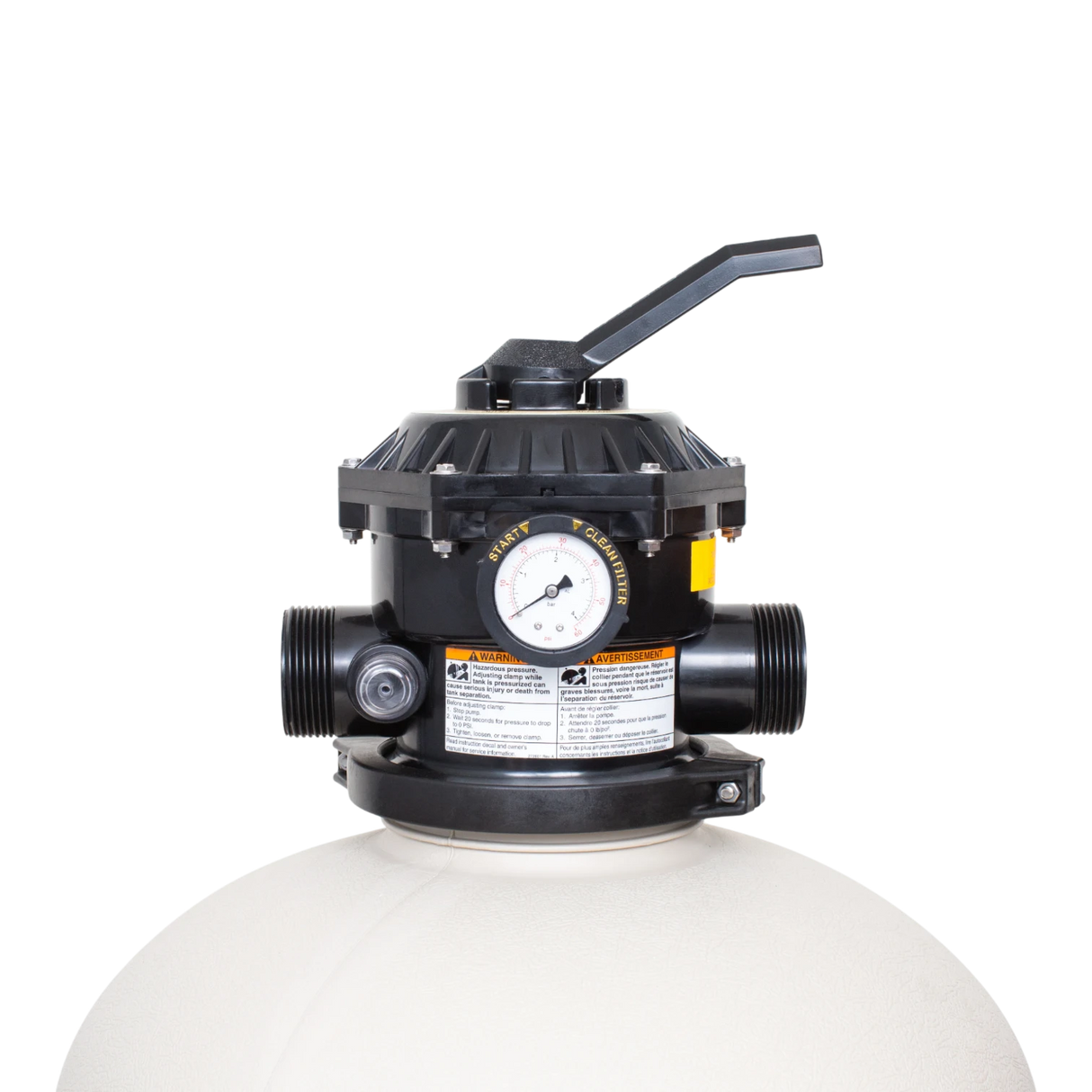

The Sand Dollar® Top Mount Filter features a clamp style, six-position multiport valve. Special lateral design provides superior flow characteristics and long filter cycles for economical operation.
22" Sand Dollar Specifications:
- Filtration Area: 2.3 square feet
- Material: Thermoplastic
- Maximum Flow Rate: 60 gal/min
- Maximum Working Pressure: 40 pounds per square inch
- Product Height: 43.75 inch
- Product Width: 22.5 inch
- Sand Required: 250 pound
- Tank Material: Thermoplastic
- Turnover 10hrs: 36000 gallon
- Turnover 12hrs: 43200 gallon
- Turnover 8hrs: 28200 gallon
- Vertical Clearance: 50.5 inch
Additional Information
Technical Specs
Valve Type
Top-Mount Multiport (Clamp)
Sand Required
250 pound
Design Flow Rate
60 gal/min
Maximum Working Pressure
40 pounds PSI
Filtration Area
2.3 square feet
Product Height
43.75 inch
Product Width
22.5 inch
Vertical Clearance
50.5 inch
Shipping Dimensions
23 x 23 x 42 inch
Product Weight
44 pound
This product ships free via FedEx Home Delivery.
Resources
User Manual
Highlights

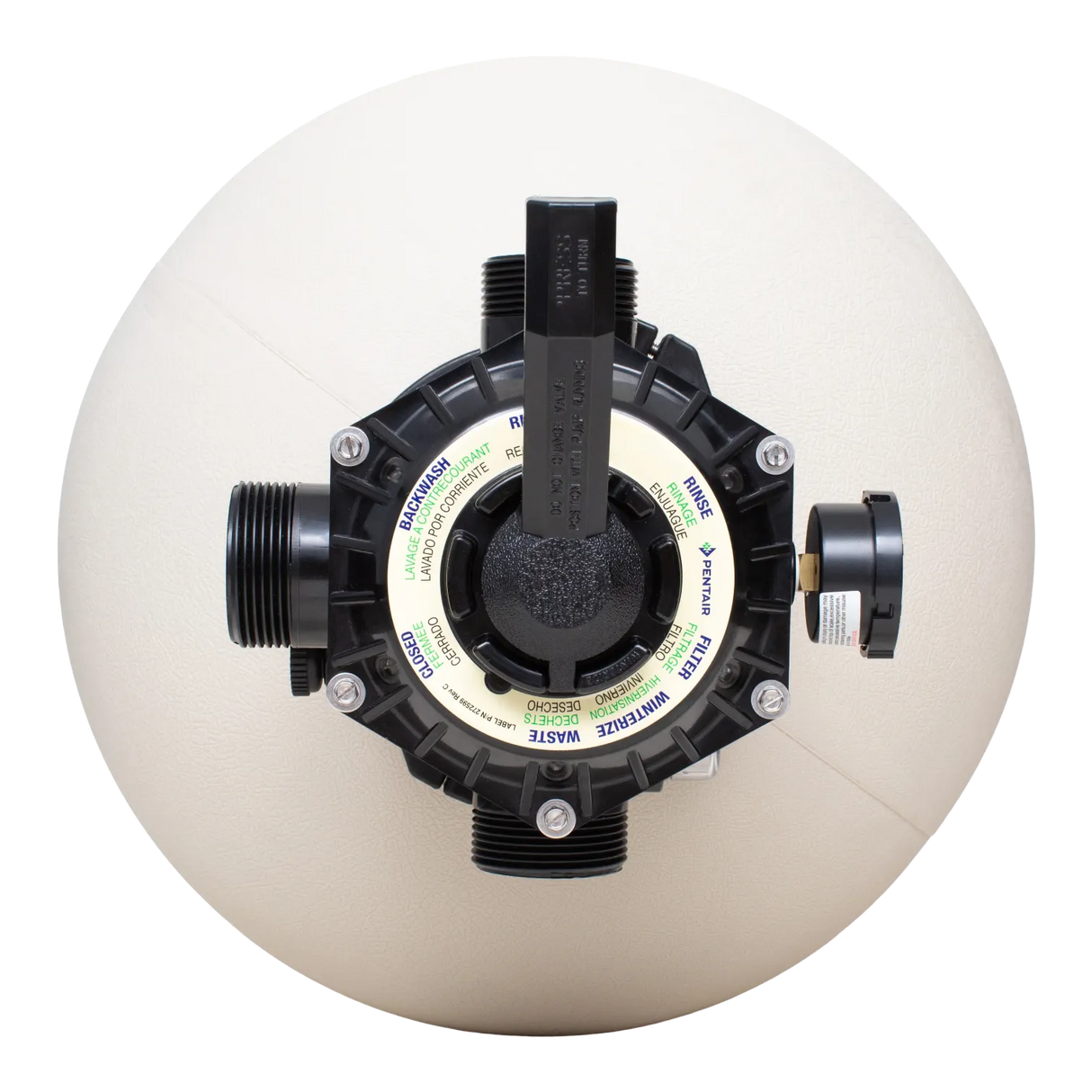

- Six-position, top-mounted multiport valve
- Combination water and sand drain makes servicing and winterizing fast and easy
- One-piece thermoplastic tank for strength and corrosion resistance
