Intermatic PB313E 24-Hour Timer
Intermatic | SKU:
PB313E
$78.00
$85.00
Unit price
/
Unavailable
Intermatic PB313E 24-Hour Timer is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

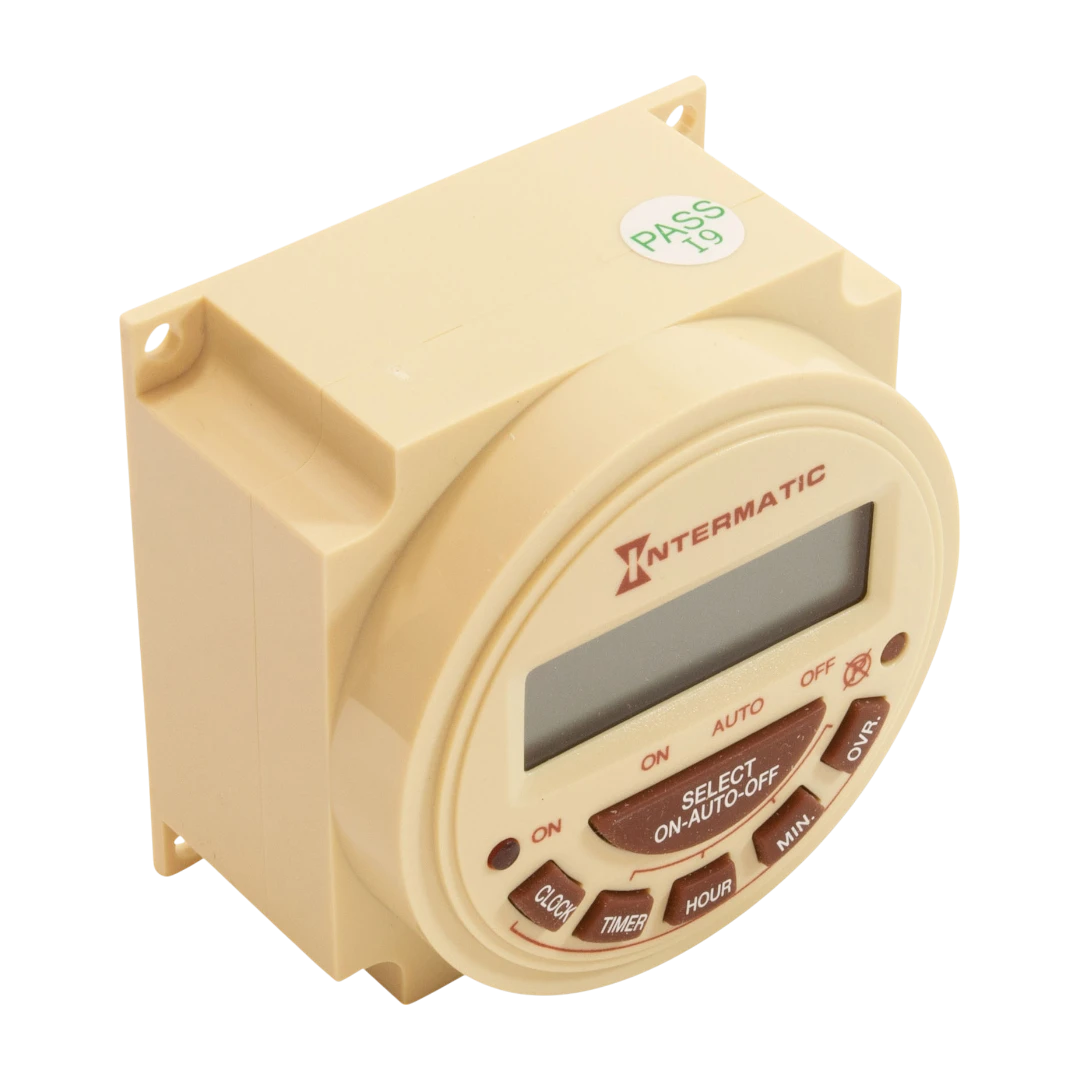

The Intermatic PB313E is a 24-hour electronic panel mount timer designed to automate equipment by turning it on and off up to eight times daily. Operating at 120 volts AC with a 16-amp resistive load capacity, it is suitable for controlling motors up to 0.5 horsepower.
Key Features:
- Multiple Daily Operations: Allows up to eight on/off cycles per day, providing flexibility for various applications.

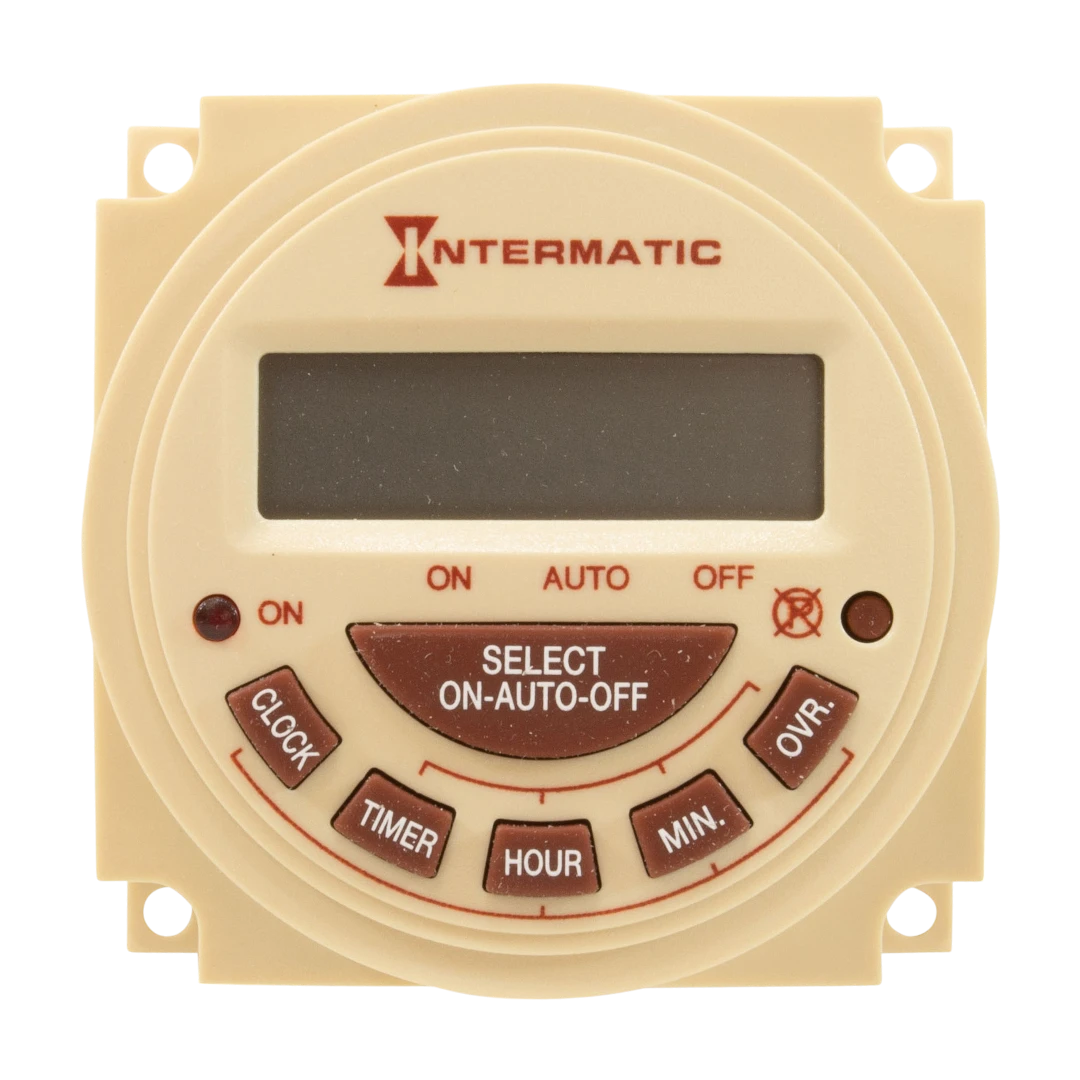

- Manual Override Options: Features a select switch enabling continuous ON, OFF, or AUTO modes, offering manual control when needed.
- Durable Construction: Housed in a rugged beige plastic enclosure, it is built to withstand environmental factors.
- Battery Backup: Equipped with a replaceable lithium battery with a three-year service life, ensuring timekeeping during power outages.
304921
Specifications
Specifications
| Application | Automation |
| Voltage Rating | 120 VAC, 50/60 Hz |
| Amperage Rating | 16A resistive; 0.5 HP motor load |

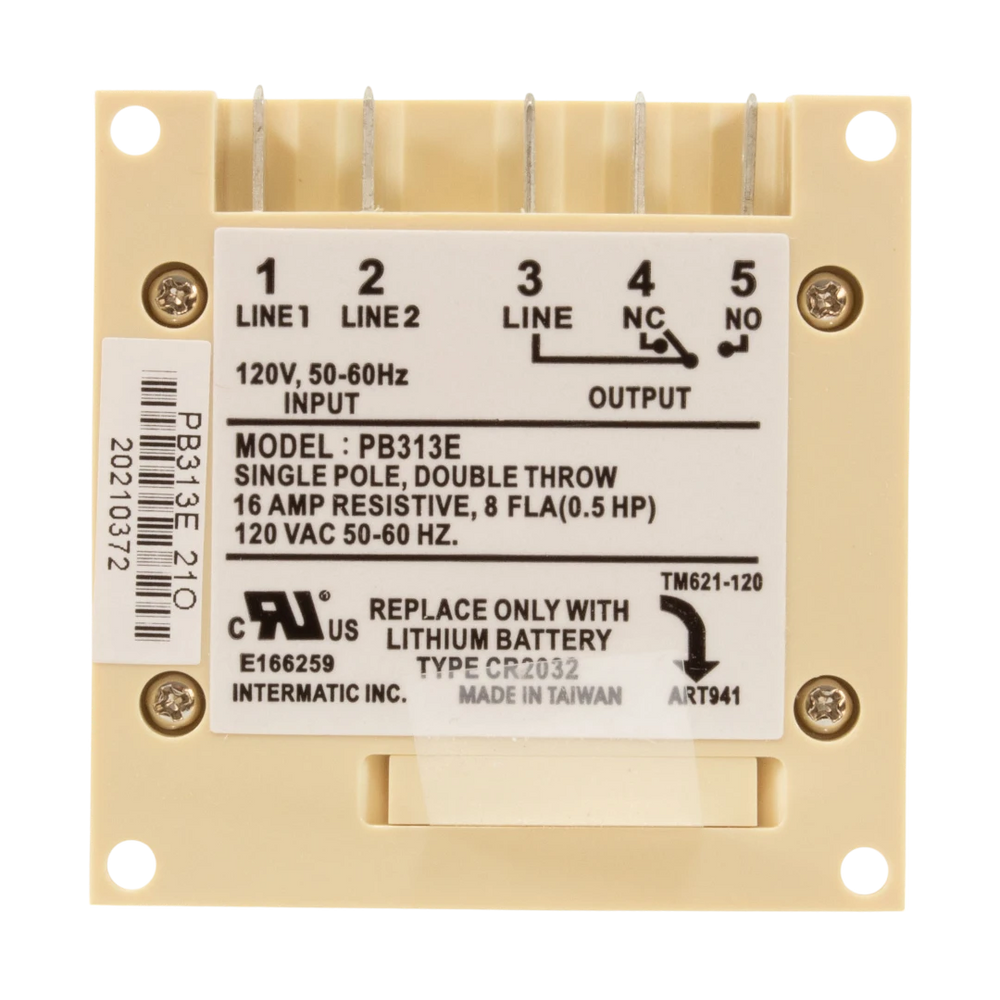

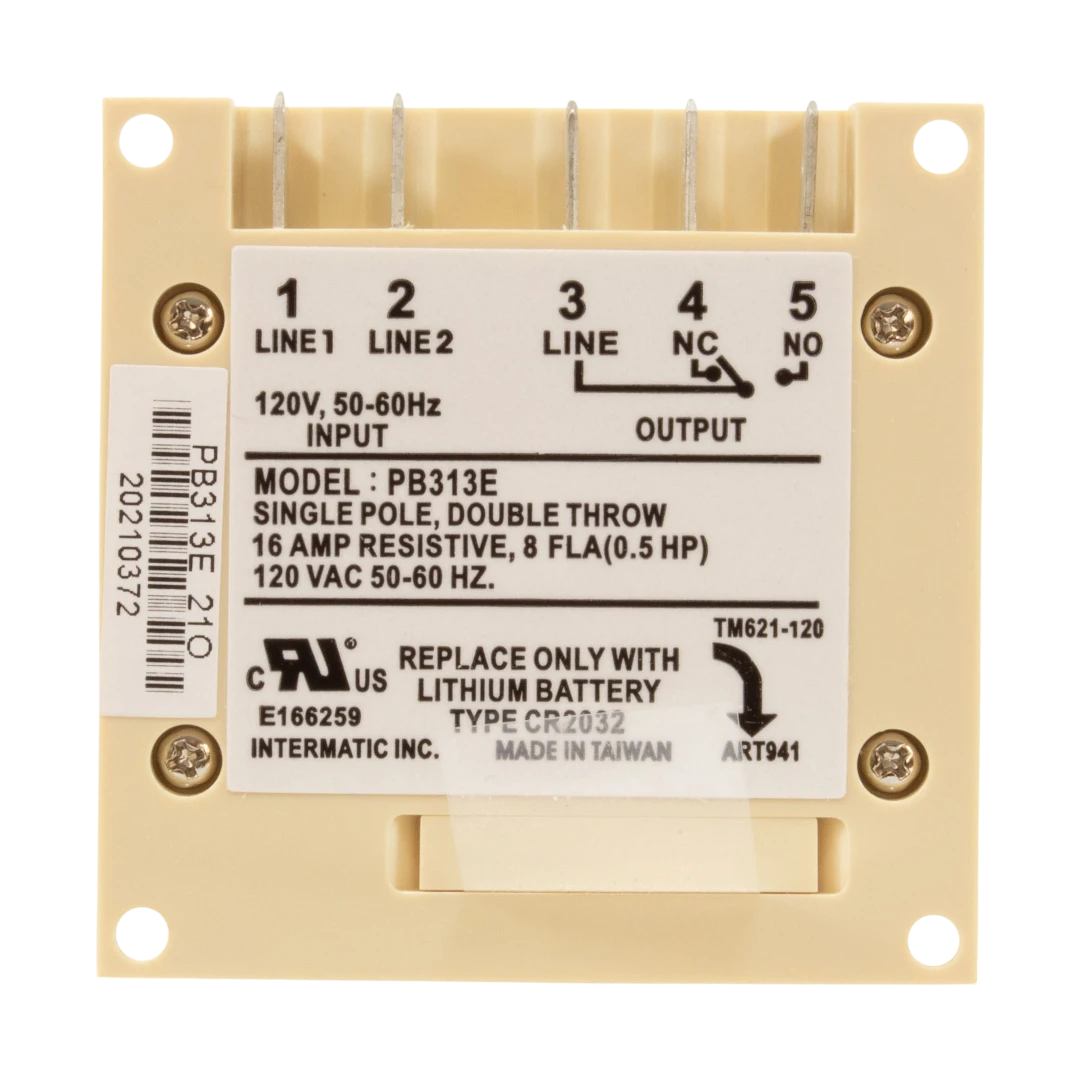

| Switch Type | Single-Pole Double-Throw (SPDT) |
| Dimensions | 2-3/8 x 2-3/8 x 1-1/8 inches |
| Battery Backup | Replaceable lithium battery with a 3-year life span |
| Compatibility | Suitable for controlling pool and spa equipment, sprinklers, lights, fountains, and more |
| Installation | Panel-mounted; professional installation recommended |
| Warranty | 1 year |
| Shipping Dimensions | 2.75 x 2.75 x 1.75 inch |
| Product Weight | 0.222 pound |
Delivery & Shipping
Delivery & Shipping
| Shipping Dimensions | 2.75 x 2.75 x 1.75 inch |
| Product Weight | 0.222 pound |
This product ships free via UPS Ground
There are currently no wholegoods listed for use with this product *
Features:
- Supports up to 8 on/off cycles daily
- Manual override switch for ON, OFF, or AUTO modes
- Replaceable lithium battery backup with a 3-year life span
- Durable beige plastic enclosure for environmental protection
- Ideal for residential and light commercial applications
