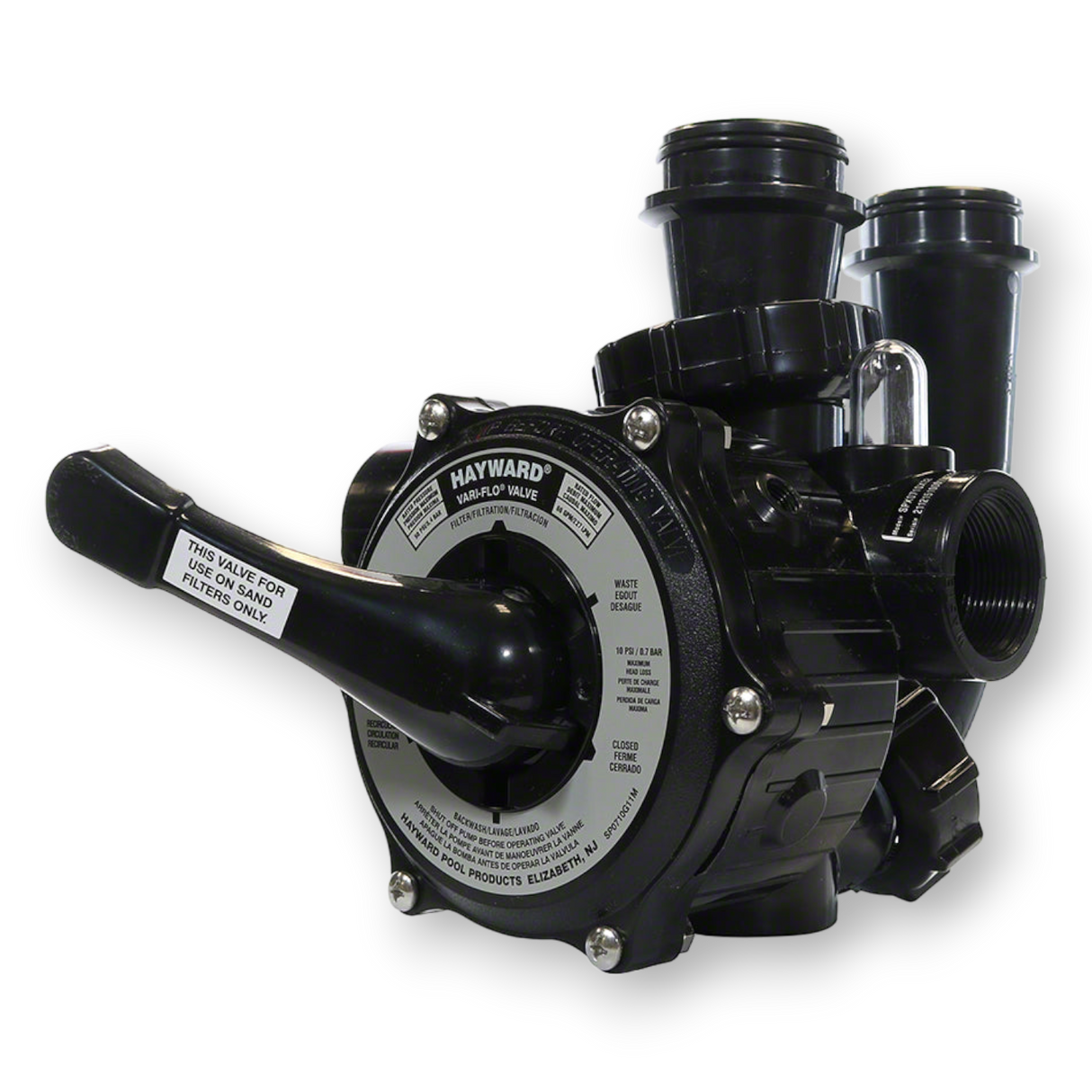

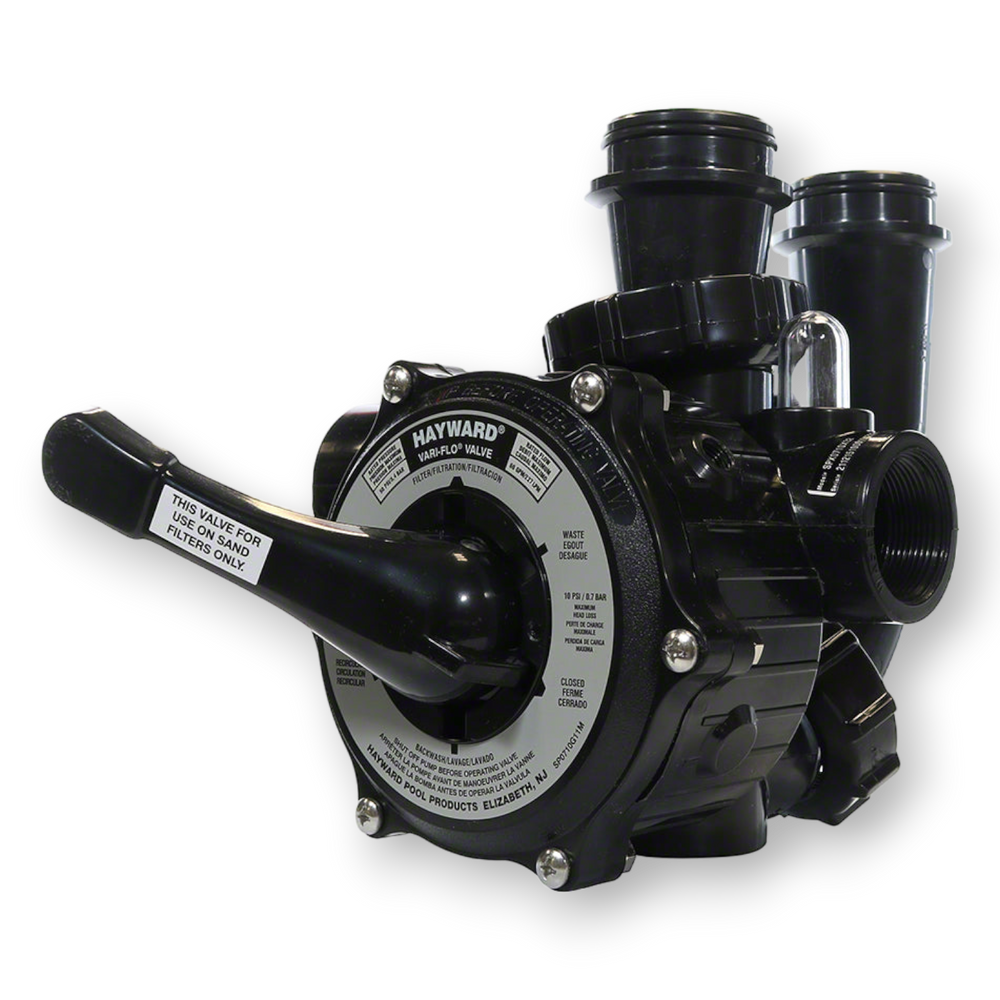

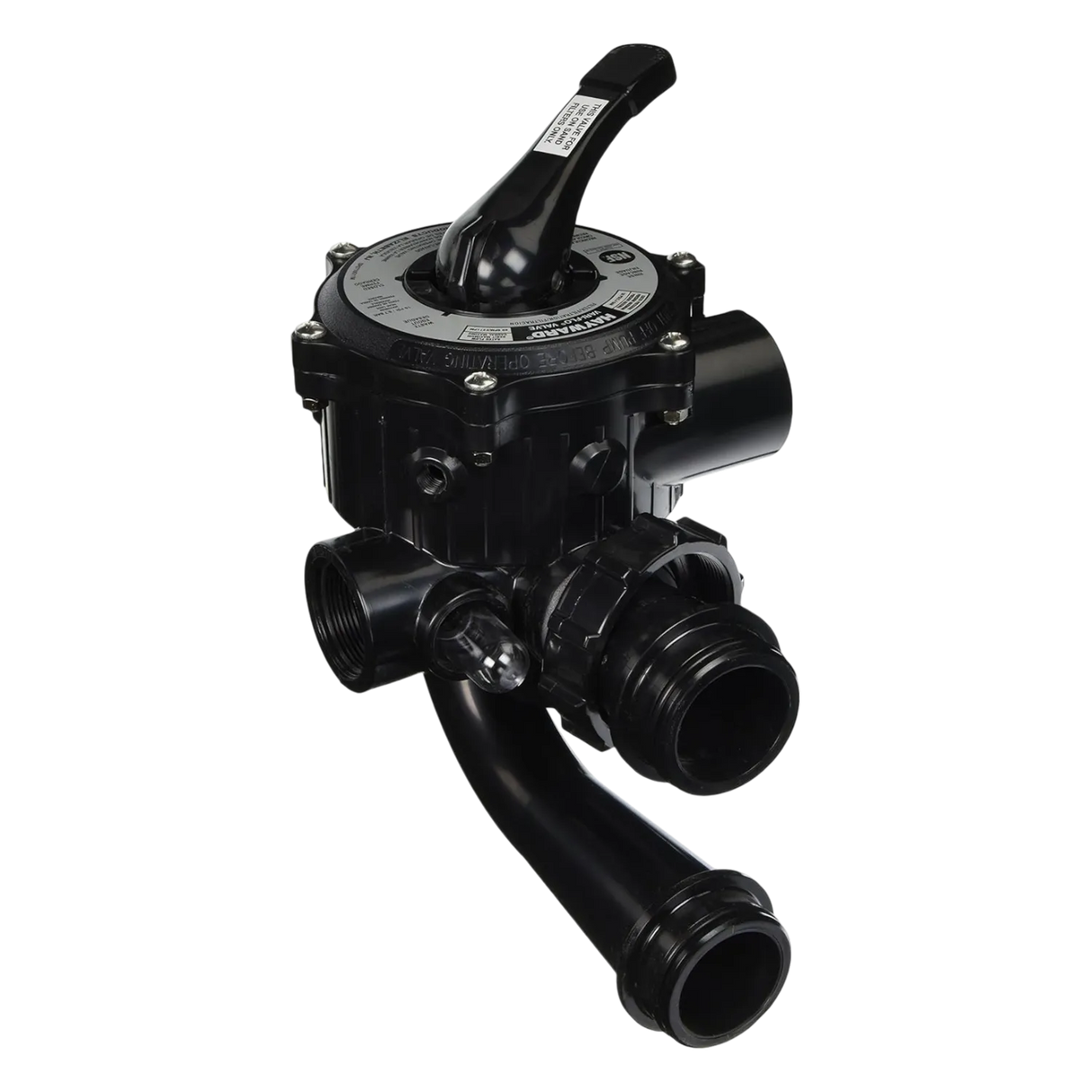

Hayward Vari-Flo 1-1/2" 6-Position Multi-Port Valve | Side-Mount | SPX0710X32
$300.00
3 In Stock
Hayward Vari-Flo 1-1/2" 6-Position Multi-Port Valve | Side-Mount | SPX0710X32 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
This is a genuine Hayward 1-1/2inch Vari-Flo 6-Position Multi-Port Valve, Part No. #SPX0710X32 for use with Hayward S200 & S240 Series Filters.
Note: ONLY for S200 & S240 Series Filters.
Hayward's Vari-Flo XL multiport control valves, made of reinforced thermoplastic material and engineered for maximum flow, are the professional's choice in multiport valves. All Vari-Flo control valves feature an easy-to-use lever action handle that lets you "dial" up to six valve/filter functions: filter, backwash, waste, rinse, closed, winter or recirculate. Complete with an integral sight glass that lets you see when the backwashing cycle is completed, Hayward's wide selection of valve configurations allows you to match the right Vari-Flo valve to the proper application.
VARI-FLO VALVE POSITIONS:
| Position | Description |
| Filter | Normal position during operation of the filter system |
| Backwash | Position to clean or purge the system of built up debris |
| Rinse |
Used with Sand Filters, this position is designed to flush any leftover sand from the system after backwashing, so it doesn't get returned to the pool
|
| Closed |
Position to close off the inlet and outlet to the filter. Useful when servicing a filter located below the pools' water level.
|
| Recirculate |
Bypasses the filter, water flows directly through the valve & the rest of the system, without going through the filter.
|
| Waste |
Bypasses the filter, with water going directly to the "waste" or "backwash" line. Used when floccing a pool to prevent debris from going through a filter.
|
Specifications
Specifications
| Pipe Size | 1.5 inch FPT |
| Filter Connection Size | Clamp (Top-Mount) |
| Mount | Side |
| Filter Type | Sand |
| Filter Series | S200 and S240 |
| Shipping Dimensions | 16.9 x 8 x 11.4 inch |
| Product Weight | 5.36 lb |
Shipping Details
Shipping Details
| Shipping Dimensions | 16.9 x 8 x 11.4 inch |
| Product Weight | 5.36 lb |
