Hayward Super Pump® Single Speed 3/4HP Pool Pump | 115 / 230V | W3SP2605X7
Hayward | SKU:
W3SP2605X7
$699.00
was
$750.00
You save 6%
Unit price /
Unavailable
Hayward Super Pump® Single Speed 3/4HP Pool Pump | 115 / 230V | W3SP2605X7 is backordered and will ship as soon as it is back in stock.
Free Delivery with UPS
Couldn't load pickup availability
Description
Description
The Hayward® Super Pump series medium head pumps set the standard for excellence and value. Designed for in-ground pools and spas of all types and sizes, Super Pump features a large see-through strainer cover, super-size debris basket and exclusive service-ease design for extra convenience. Super Pump combines proven performance with quiet, efficient and dependable operation.
Their heavy duty, high-performance motor and airflow ventilation provide quieter, cooler, more efficient operation for virtually any pool or spa, while their exclusive service ease design offers quick 4-bolt access to all internal components. With these and other advanced features, it’s easy to see why Super Pump is the best-selling medium-head pool pump in the world.
Applications
In-ground pools of all types and sizes (including in-floor cleaning systems, solar heating systems, water features)
In-ground spas or in-ground pool/spa combination
Fountains
Features
- Heat-Resistant, Industrial - Size Ceramic Seal is long-wearing and drip proof
- Heavy-Duty, High-Performance Motor with air-flow ventilation for quieter, cooler operation
- Mounting Base provides stable, stress-free support, plus versatility for any installation requirement. Adapts 48-and 56-frame motors
- Self-Priming (suction lift up to 10’ above water level)
- Reliability and Performance - #1 selling pool pump
- Best all-around circulation pump
- Faster service -remove 4 bolts to access impeller
- Corrosion-Proof Impeller has smooth, wide openings to prevent fouling or clogging
- Super-Size Housing and diffuser ensure rapid priming

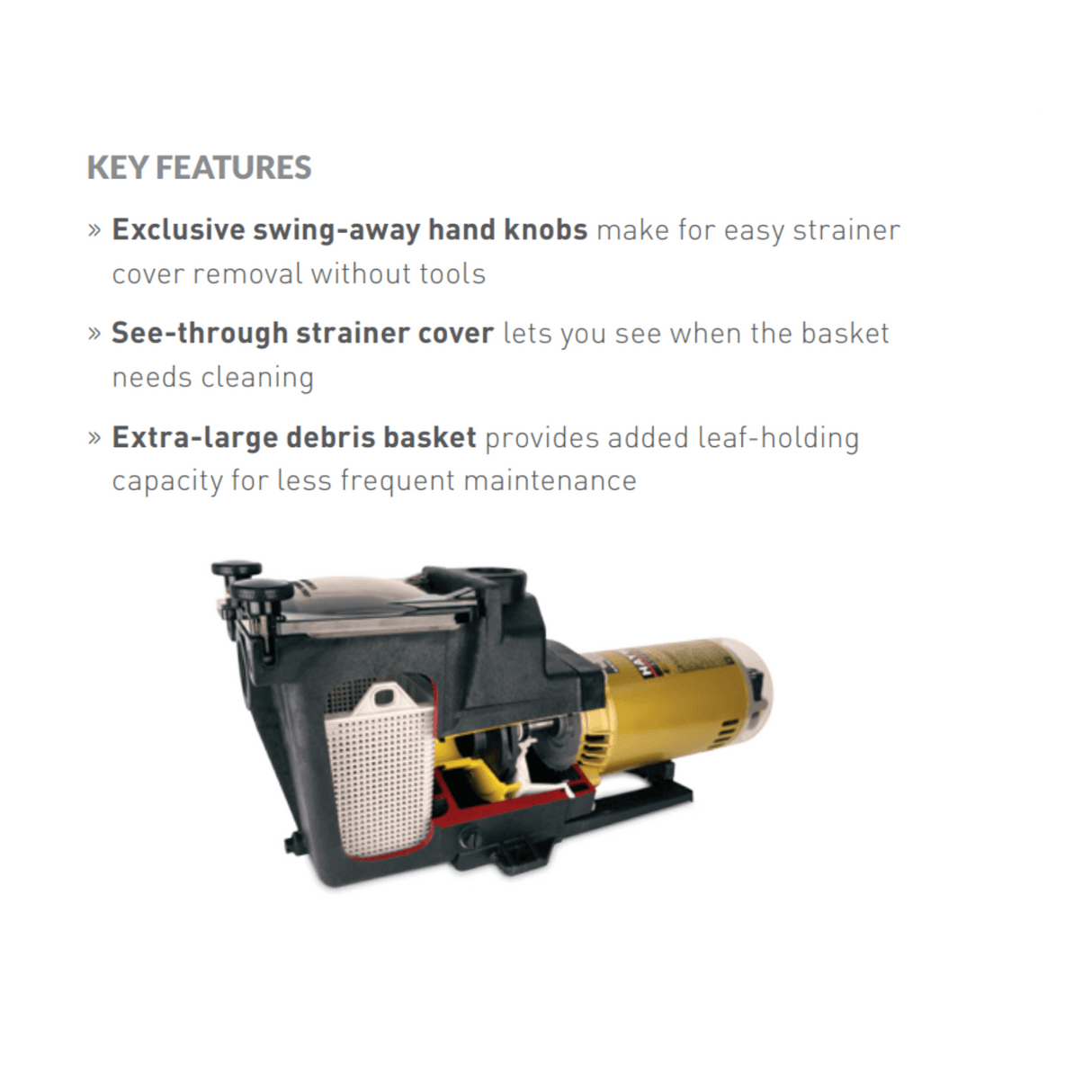

- Exclusive, Swing-Away Hand Knobs make strainer cover removal easy. No tools required... no loose parts... no clamps

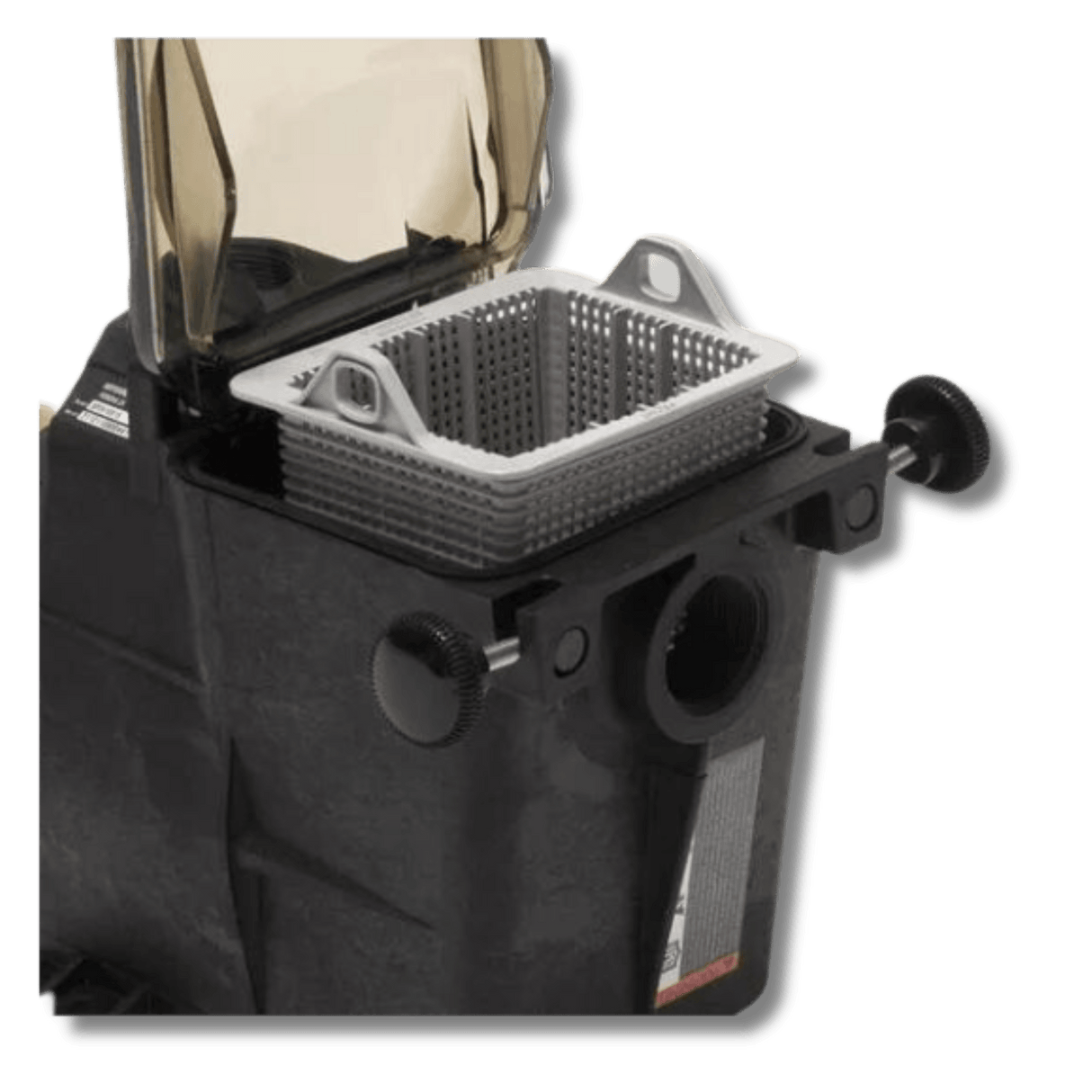

- See-Through Strainer Cover lets you see when basket needs cleaning and eliminates guesswork. Special self-adjusting seal ensures dependable sealing
- Service-Ease Design gives simple access to all internal parts. Motor and entire drive group assembly can be removed, without disturbing pipe or mounting connections, by disengaging just four bolts
Specifications
Specifications

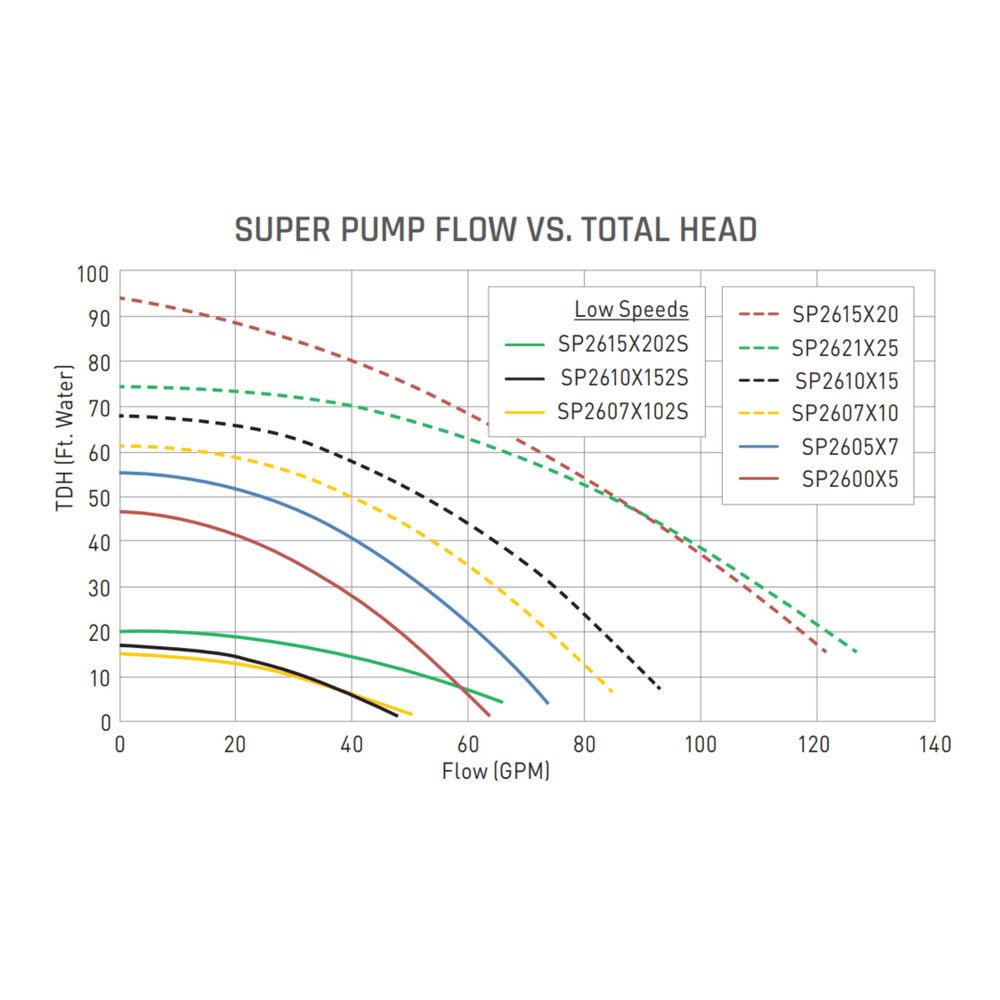

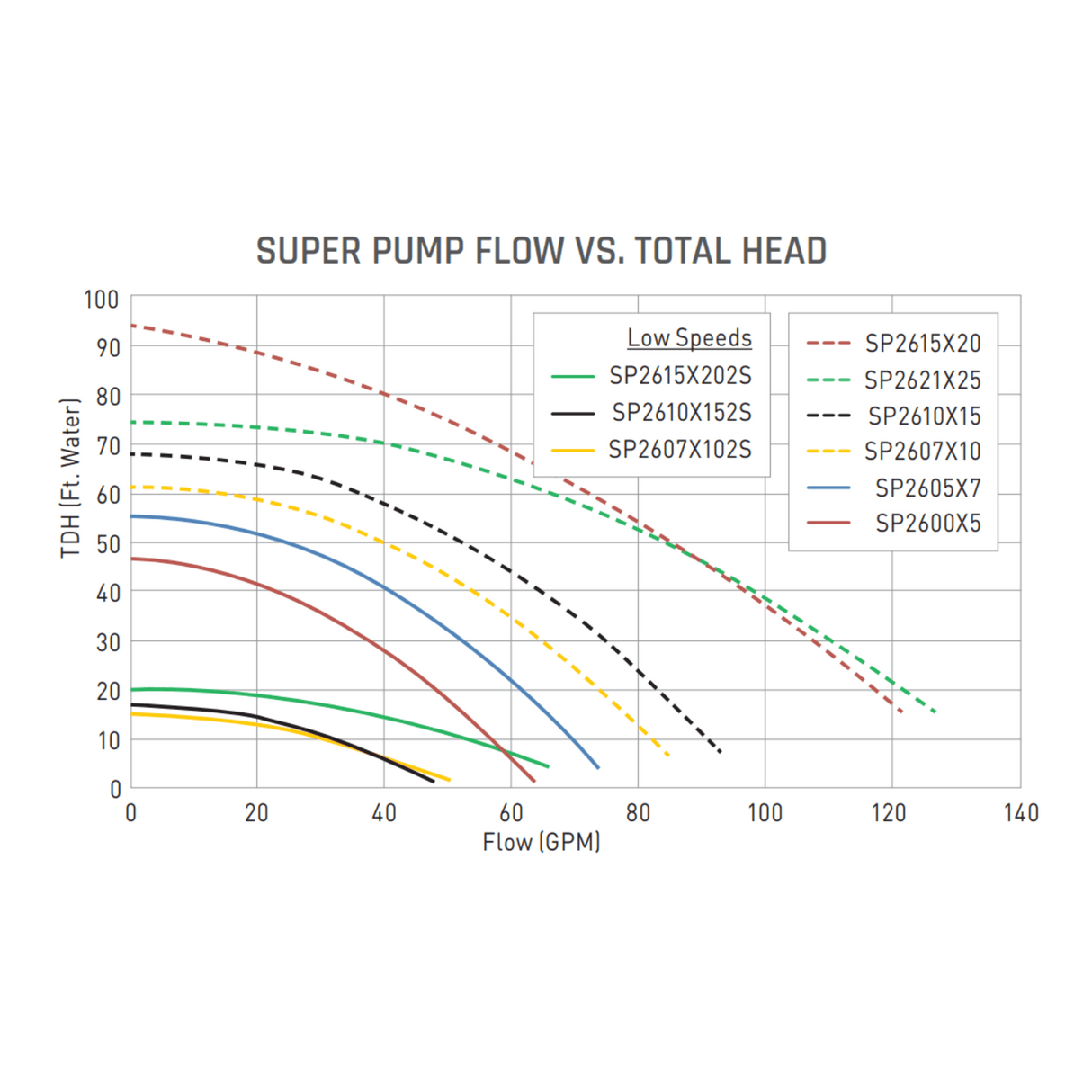

Pump Flow Curve and Data Sheet: Hayward Super Pump®
| Horsepower | 0.75 |
| Voltage | 115/230 V |
| Max Amps | 7.5 / 15 A |
| Service Factor | 1 |
| Max Working Pressure | 50 PSI |
| Motor Rating | Up-Rated |
| Motor Speed | 1-Speed |
| Product Height | 11.02 inch |
| Product Width | 8.63 inch |
| Product Depth | 23.8 inch |
| Product Weight | 32 pound |
| Shipping Dimensions | 30.1 x 10.6 x 11.8 inch |
| Horsepower | 0.75 |
| Voltage | 115/230 V |
| Max Amps | 7.5 / 15 A |
| Service Factor | 1 |
| Max Working Pressure | 50 PSI |
| Motor Rating | Up-Rated |
| Motor Speed | 1-Speed |
| Product Height | 11.02 inch |
| Product Width | 8.63 inch |
| Product Depth | 23.8 inch |
| Product Weight | 32 pound |
| Shipping Dimensions | 30.1 x 10.6 x 11.8 inch |
Hayward Super Pump® Parts Schematic (17 products)
