Hayward 2" DE Vari-Flow XL Reverse Multi-Port Valve | SP0715XR50
was
$279.00
You save 10%
9 In Stock
Free Delivery with UPS
Hayward 2" DE Vari-Flow XL Reverse Multi-Port Valve | SP0715XR50 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

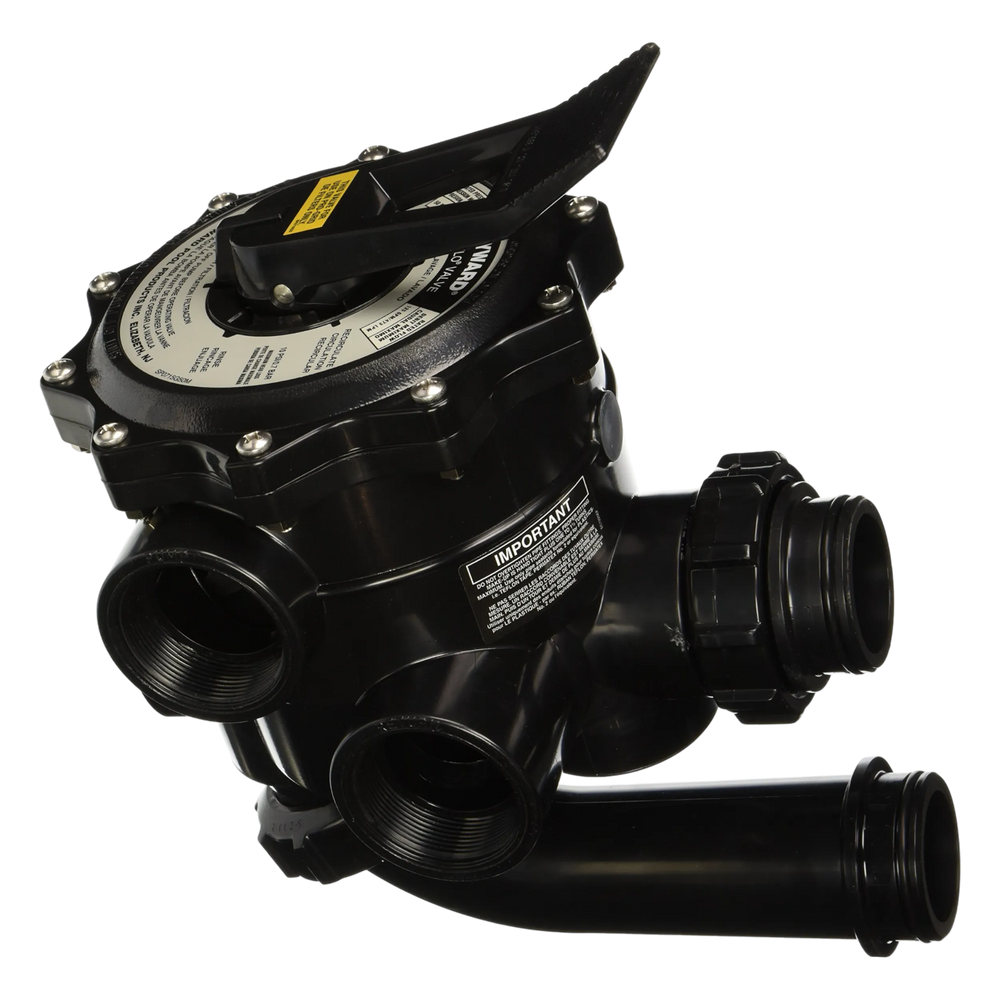

This is a genuine Hayward 2" Vari-Flo DE Reverse 6-Position Multi-Port, Part No. #SP0710XR50. This is a side-mounted Multi-Port for use with Hayward Pro-Grid DE Filters. for use with Hayward Pro-Grid & MicroClear DE Filters.
MultiPort Positions
| Position | Description |
| Filter | Normal position during operation of the filter system |
| Backwash | Position to clean or purge the system of built up debris |
| Rinse |
Used with Sand Filters, this position is designed to flush any leftover sand from the system after backwashing, so it doesn't get returned to the pool
|
| Closed |
Position to close off the inlet and outlet to the filter. Useful when servicing a filter located below the pools' water level.
|
| Recirculate |
Bypasses the filter, water flows directly through the valve & the rest of the system, without going through the filter.
|
| Waste |
Bypasses the filter, with water going directly to the "waste" or "backwash" line. Used when floccing a pool to prevent debris from going through a filter.
|
Specifications
Specifications
| Pipe Size | 2 inch FPT |
| Filter Connection Size | 2 inch Union |
| Rated Flow | 100 GPM |
| Mount | Side |
| Filter Type | DE |
| Filter Series | ProGrid / MicroClear |
| Shipping Dimensions | 15.4 x 9.4 x 12 inch |
| Product Weight | 7 lb |
Shipping Details
Shipping Details
| Shipping Dimensions | 15.4 x 9.4 x 12 inch |
| Product Weight | 7 lb |
Part of the following Schematics:
| Hayward ProGrid Filter Replacement Parts | |
|
Hayward ProGrid Filter Replacement Parts
(11 products)
|
