Hayward 1-1/2" DE Vari-Flow Reverse Multi-Port Valve | SP0710XR50
was
$180.00
You save 5%
10 In Stock
Free Delivery with UPS
Hayward 1-1/2" DE Vari-Flow Reverse Multi-Port Valve | SP0710XR50 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

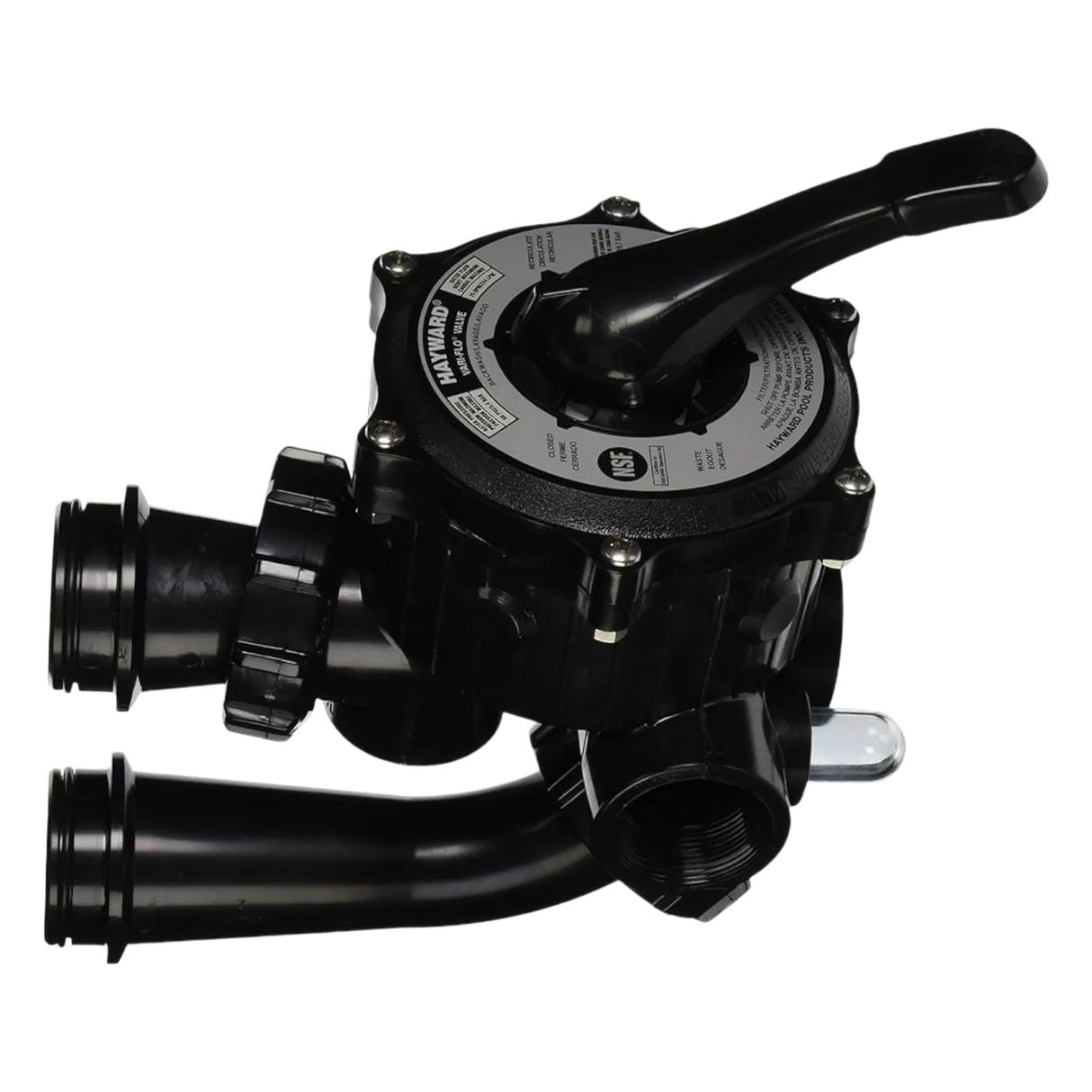

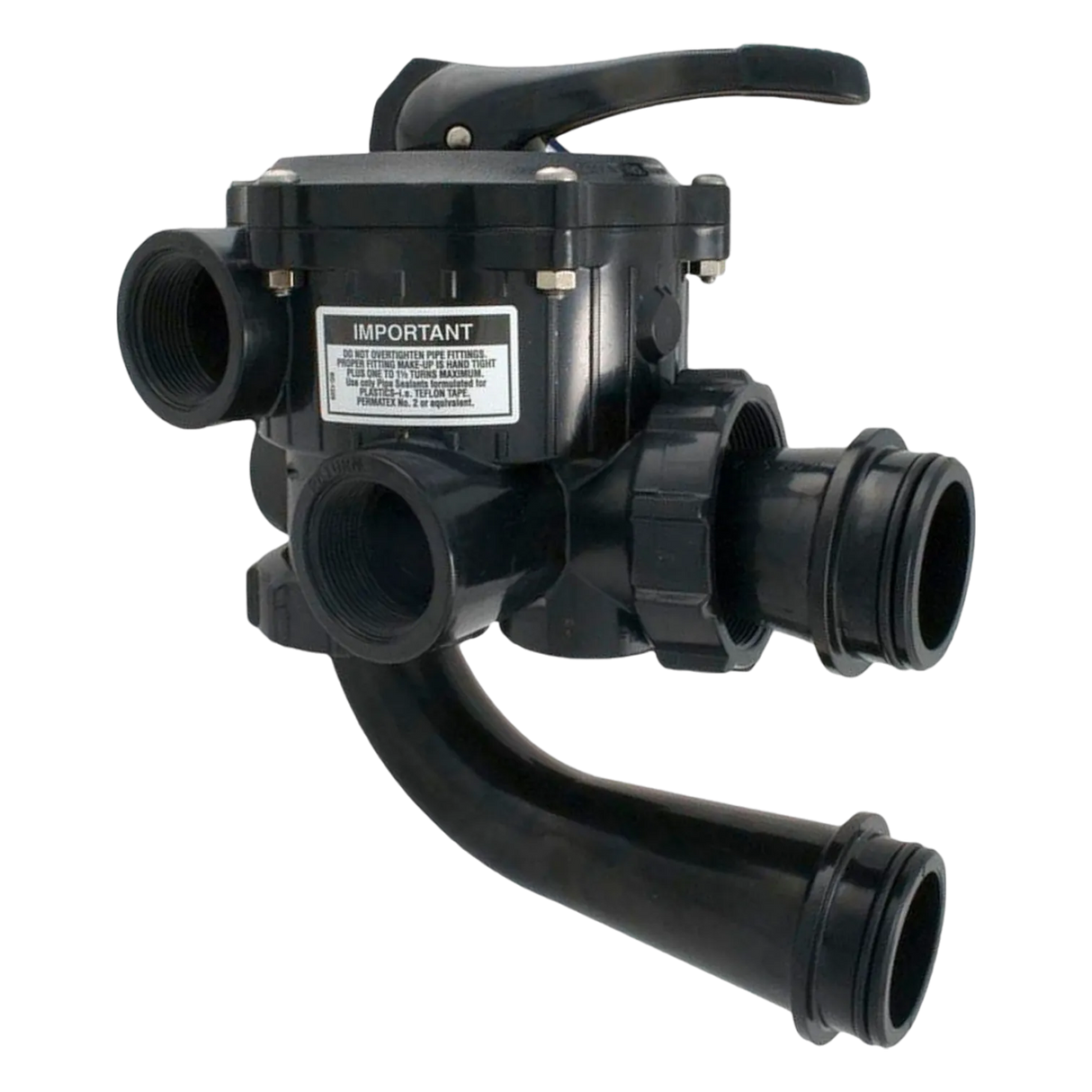

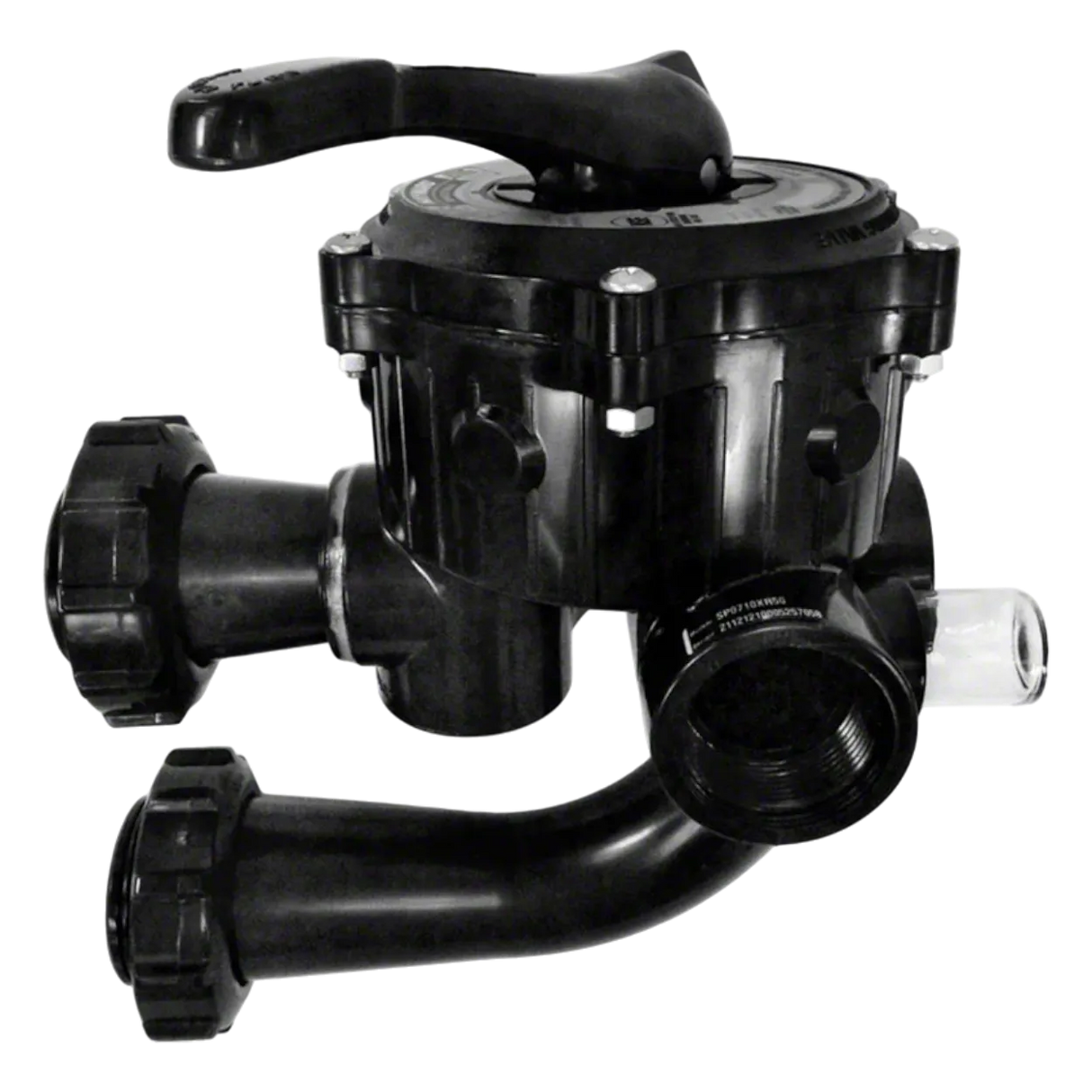

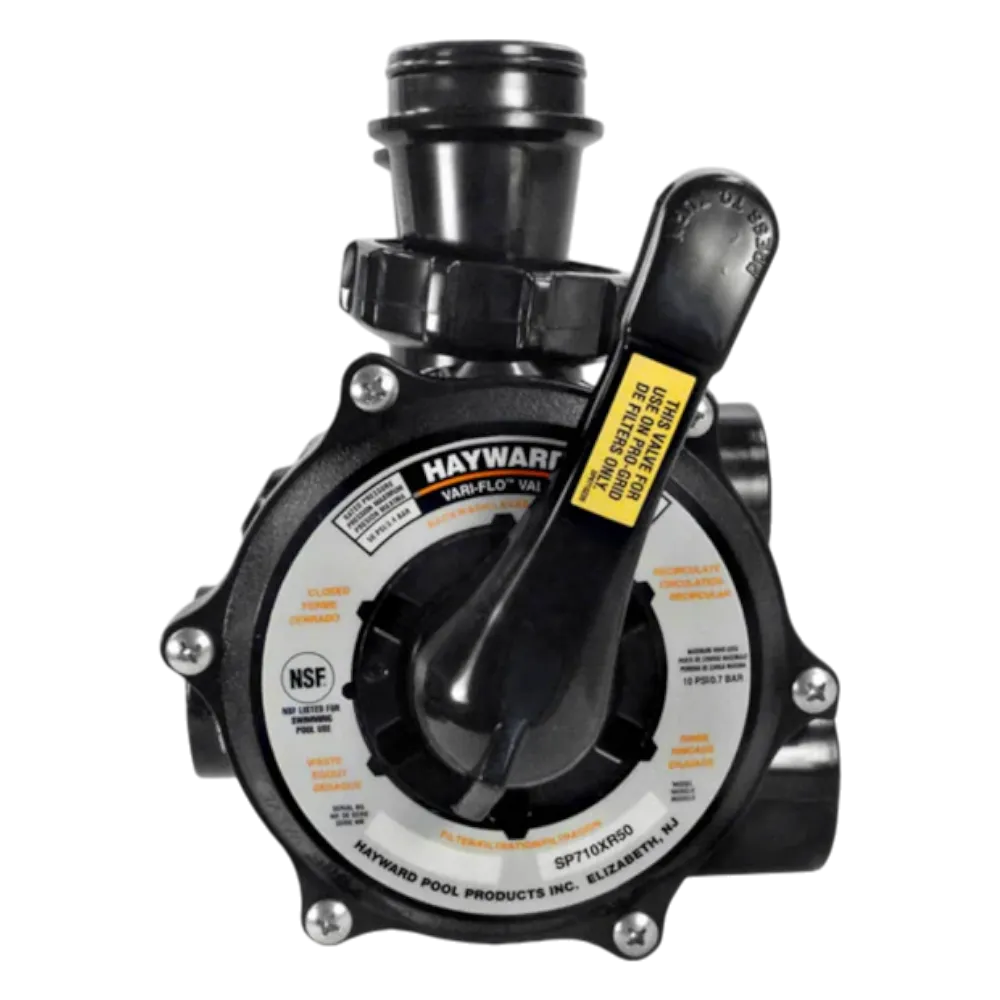

The Hayward Vari-Flo XL Multiport Control Valve, part number SP0710XR50, is a highly durable and efficient valve constructed from reinforced thermoplastic, designed for optimizing pool water flow. Engineered for ease of operation, its lever-action handle allows you to select from six functions, including filter, backwash, waste, rinse, closed, and recirculate, making it an indispensable tool for pool maintenance.
This 1-1/2 Inch FIP side mount valve supports up to 150 GPM, with a built-in sight glass for monitoring the backwash cycle, ensuring precision and reliability for your D.E. pool filter system. Discover the ideal configuration for your setting with the versatile Hayward Vari-Flo valve, recognized by professionals for its performance in maximizing pool operations.
MultiPort Positions
| Position | Description |
| Filter | Normal position during operation of the filter system |
| Backwash | Position to clean or purge the system of built up debris |
| Rinse |
Used with Sand Filters, this position is designed to flush any leftover sand from the system after backwashing, so it doesn't get returned to the pool
|
| Closed |
Position to close off the inlet and outlet to the filter. Useful when servicing a filter located below the pools' water level.
|
| Recirculate |
Bypasses the filter, water flows directly through the valve & the rest of the system, without going through the filter.
|
| Waste |
Bypasses the filter, with water going directly to the "waste" or "backwash" line. Used when floccing a pool to prevent debris from going through a filter.
|
Specifications
Specifications
Hayward 1.5 inch DE Vari-Flow User Manual
| Pipe Size | 1.5 inch FPT |
| Filter Connection Size | 1.5 inch FBT (female buttress thread) |
| Mount | Side |
| Filter Type | Diatomaceous Earth (DE) |
| Shipping Dimensions | 16.9 x 8 x 11.4 inch |
| Product Weight | 5 lb |
Shipping Details
Shipping Details
| Shipping Dimensions | 16.9 x 8 x 11.4 inch |
| Product Weight | 5 lb |
