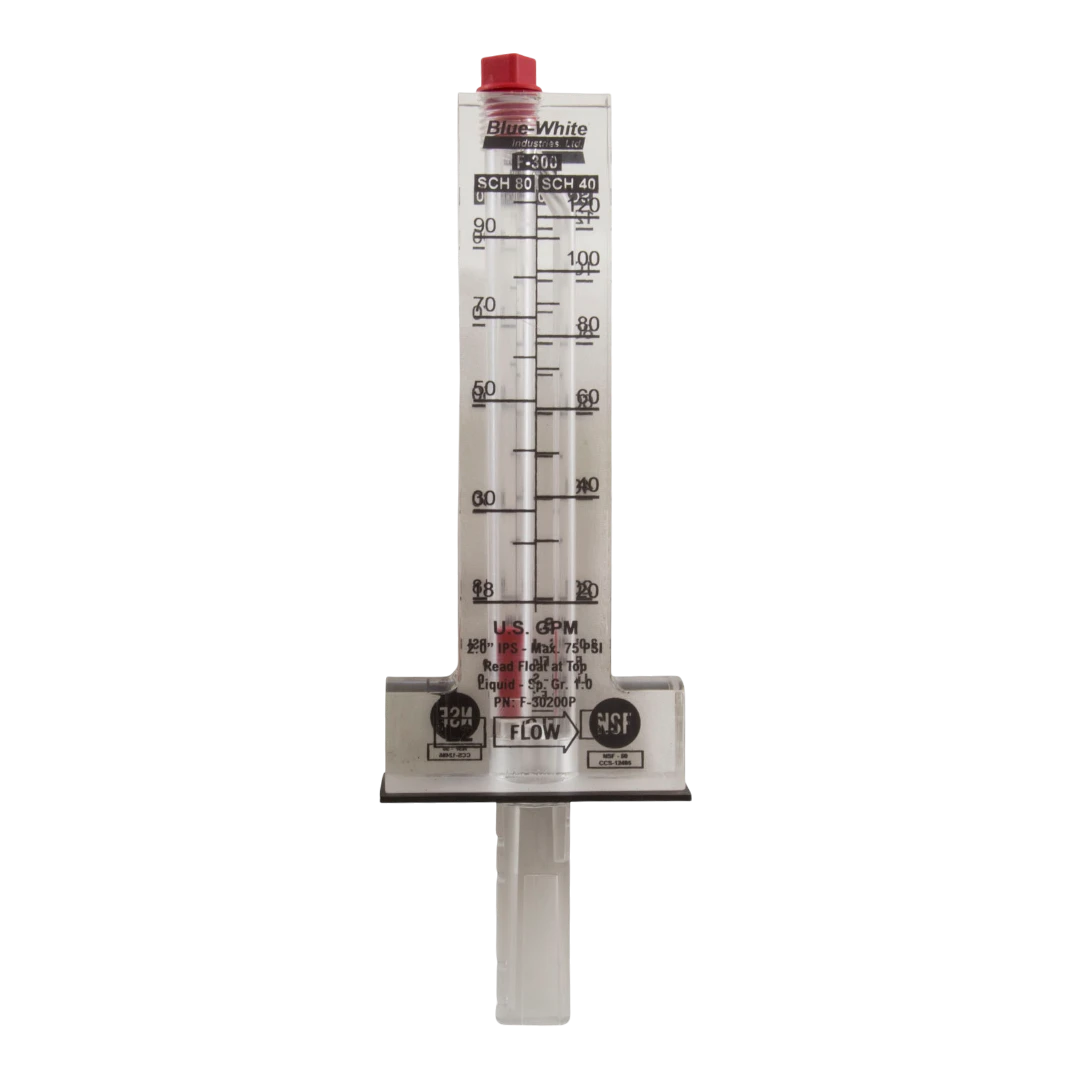

BlueWhite 1-1/2 inch Horizontal Flow Meter 10-70 GPM | F-30150P

The F-300 Series Flowmeters are horizontal mount only and provide a convenient and economic means of measuring water flow in a closed pipe system. The F-300 Series Flowmeters utilize a pitot tube pick up and a hard edged float design to measure flow. They feature a tough, one-piece machined acrylic meter body, corrosion resistant internal parts, and permanent screen-printed scale. You will get all the strength and long service life required in most commercial and industrial applications.

The F-300 flowmeters have a one piece, machined acrylic meter body, annealed for added strength and chemical resistance. A rare earth magnet is located within the red PVDF float of the these F-300 flowmeters. When the magnet passes through the Alarm Trigger Zone (Hysteresis) of the Flow Sensor Accessory (F-300S sold separately), the built-in contact closure switch sends a signal to external devices.

Pipe Size	1-1/2 inch
Flow Rating	10 - 70 GPM
Pressure Rating	75 PSI
Shipping Dimensions	10.5 x 3.75 x 2 inch
Each Product Weight	0.7 pound

Shipping Dimensions

10.5 x 3.75 x 2 inch

This product ships free via UPS Ground. Hazardous materials may require a signature upon delivery.
