1 HP Pump Motor 56J Frame - 1-Speed 1-Phase 115/230 Volts - Full-Rated
5 In Stock
Free Delivery with UPS
1 HP Pump Motor 56J Frame - 1-Speed 1-Phase 115/230 Volts - Full-Rated is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

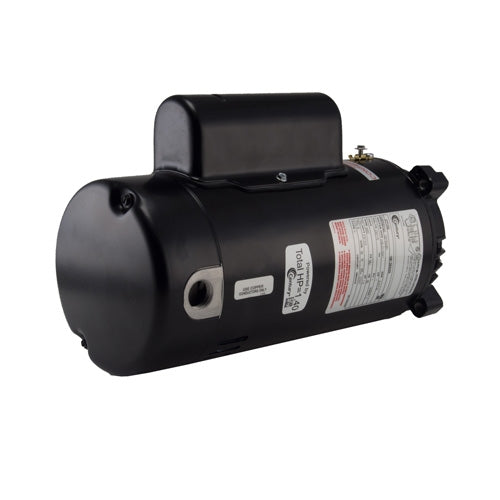

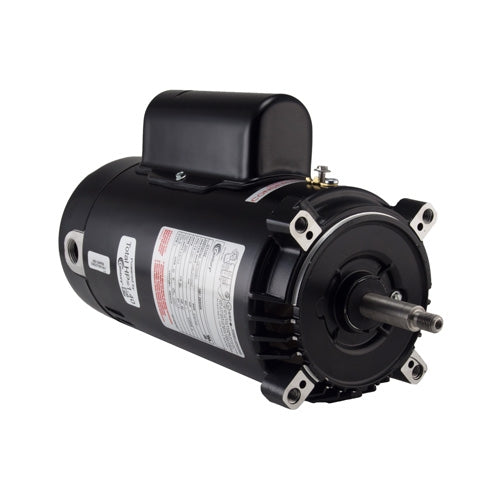

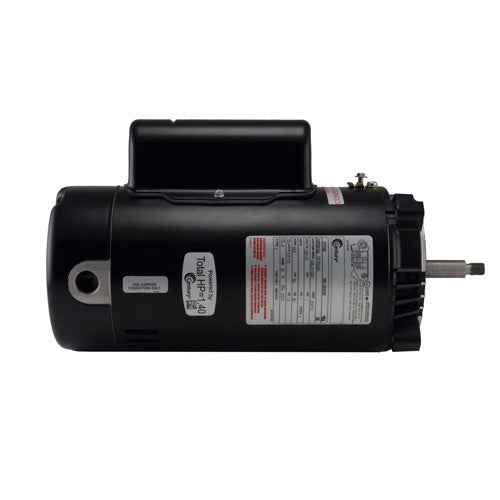

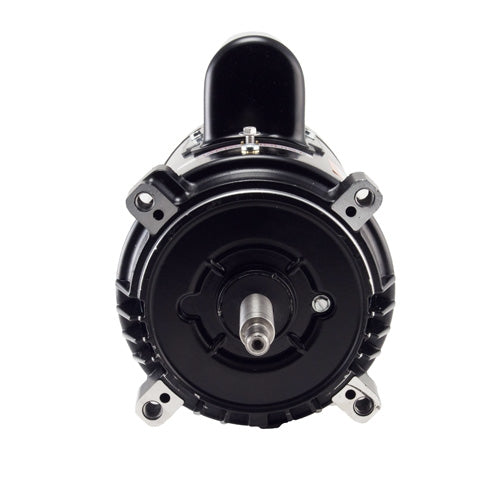

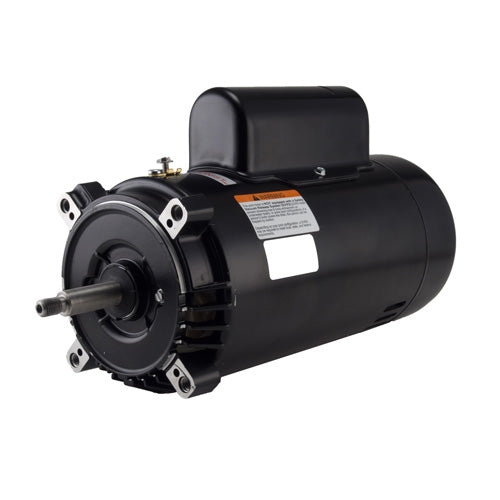

This is a Regal Beloit Century ST1102 Full-Rated Pool Pump Motor, 1 HP, 3450 RPM, 115/230V, with a 56J Threaded Shaft, ideal for demanding pool and spa applications.
This motor is a suitable substitute for Hayward SPX1607Z1M, ideal for 1 HP MaxFlo, Super Pumps, and Super Pump II's with 56J frames.
Motor Specifications
Motor Specifications
| Horsepower | 1 HP |
| Max Amps | 18.6/9.3 A |
| Voltage | 115/230V |
| Motor Frame Size | 56J |
| Service Factor | 1.5 |
| Motor Speed | 1-Speed |
| Phase | Single |
| Shipping Dimensions | 18.75 x 9 x 9.5 inch |
| Product Weight | 25.55 pounds |
| Horsepower | 1 HP |
| Max Amps | 18.6/9.3 A |
| Voltage | 115/230V |
| Motor Frame Size | 56J |
| Service Factor | 1.5 |
| Motor Speed | 1-Speed |
| Phase | Single |
| Shipping Dimensions | 18.75 x 9 x 9.5 inch |
| Product Weight | 25.55 pounds |
Shipping Details
Shipping Details
| Shipping Dimensions | 18.75 x 9 x 9.5 inch |
| Product Weight | 25.55 pounds |
Part of the following Schematics:
| Hayward Super Pump Replacement Parts | |
|
Hayward Super Pump Replacement Parts
(17 products)
|
1 HP Pump Motor 56J Frame - 1-Speed 1-Phase 115/230 Volts - Full-Rated
