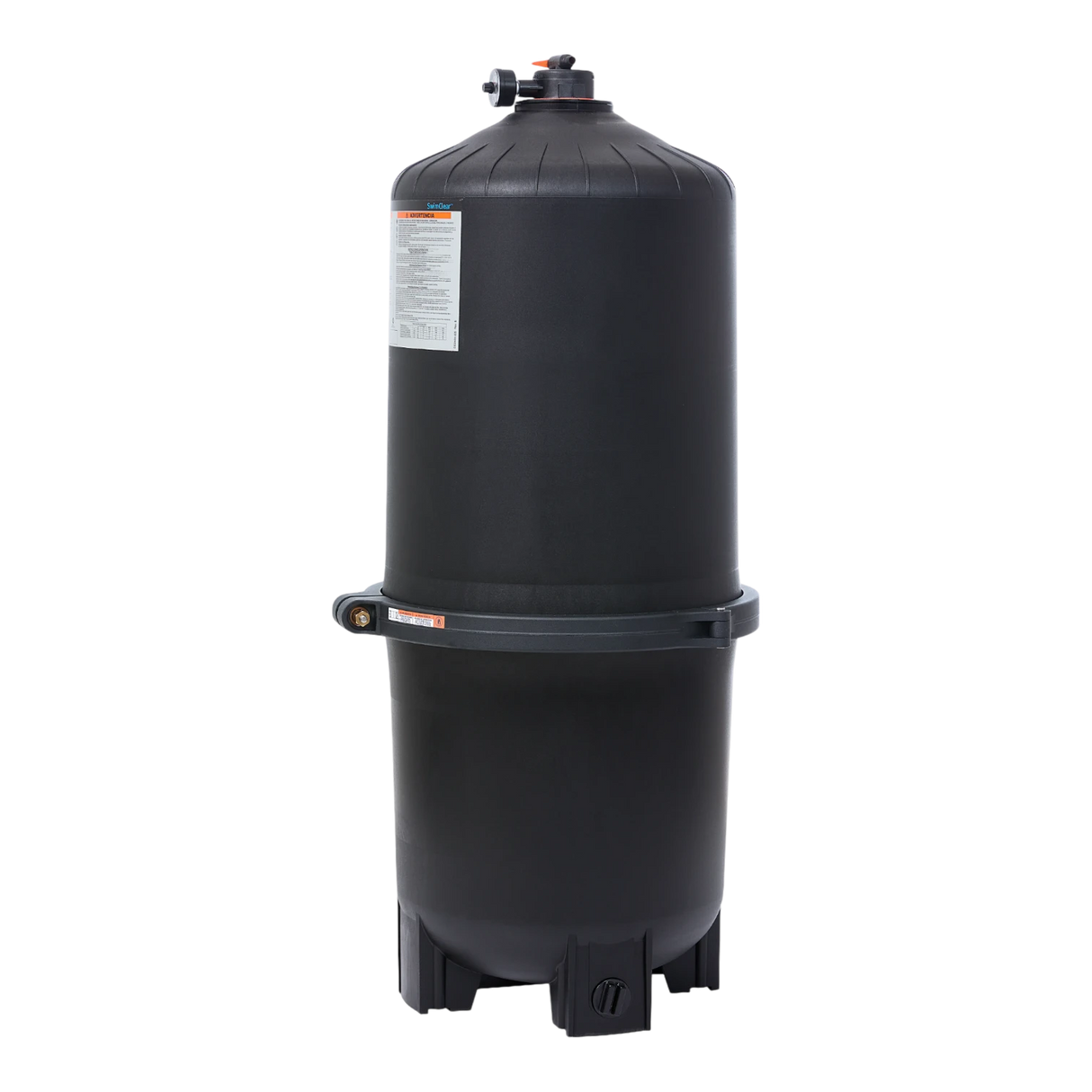

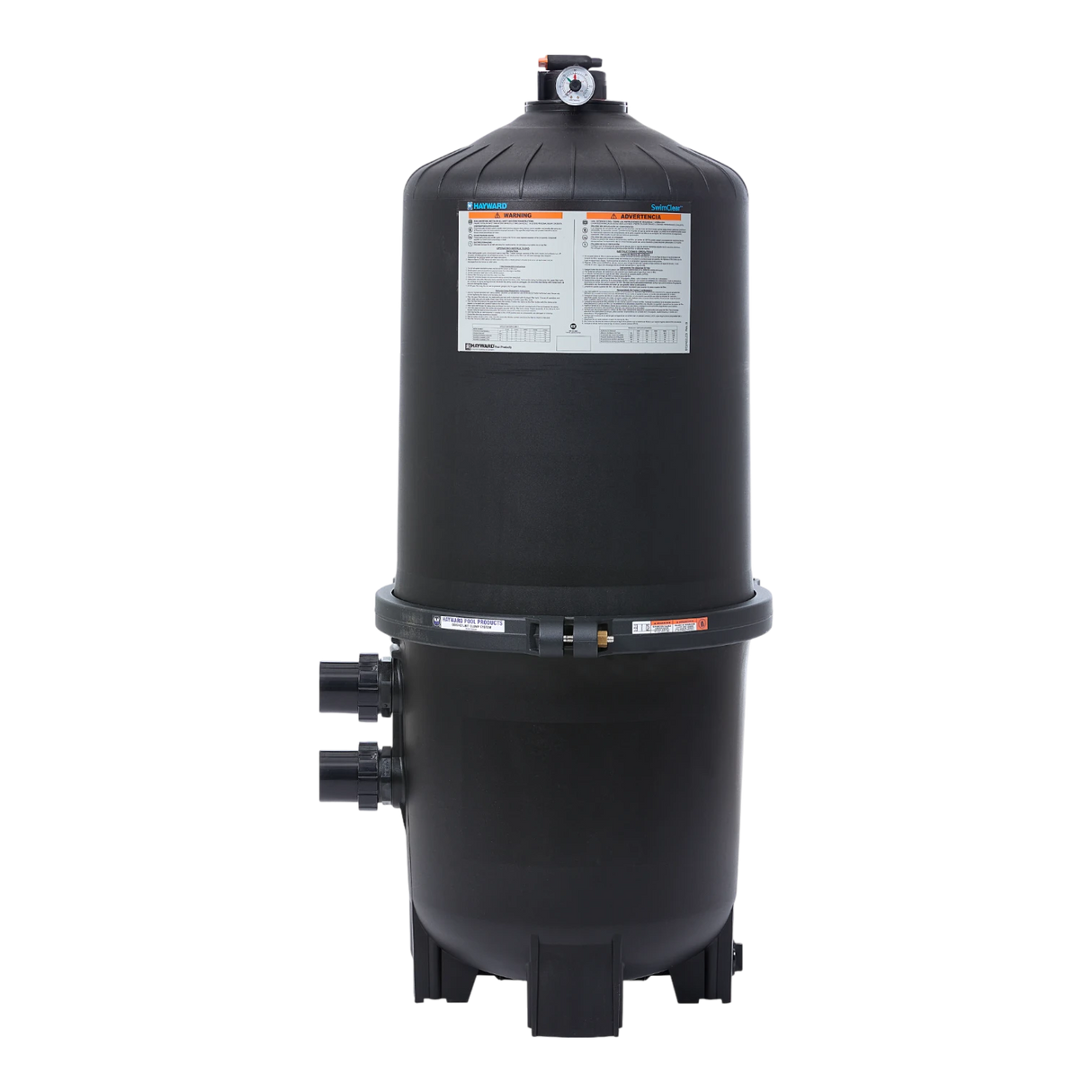

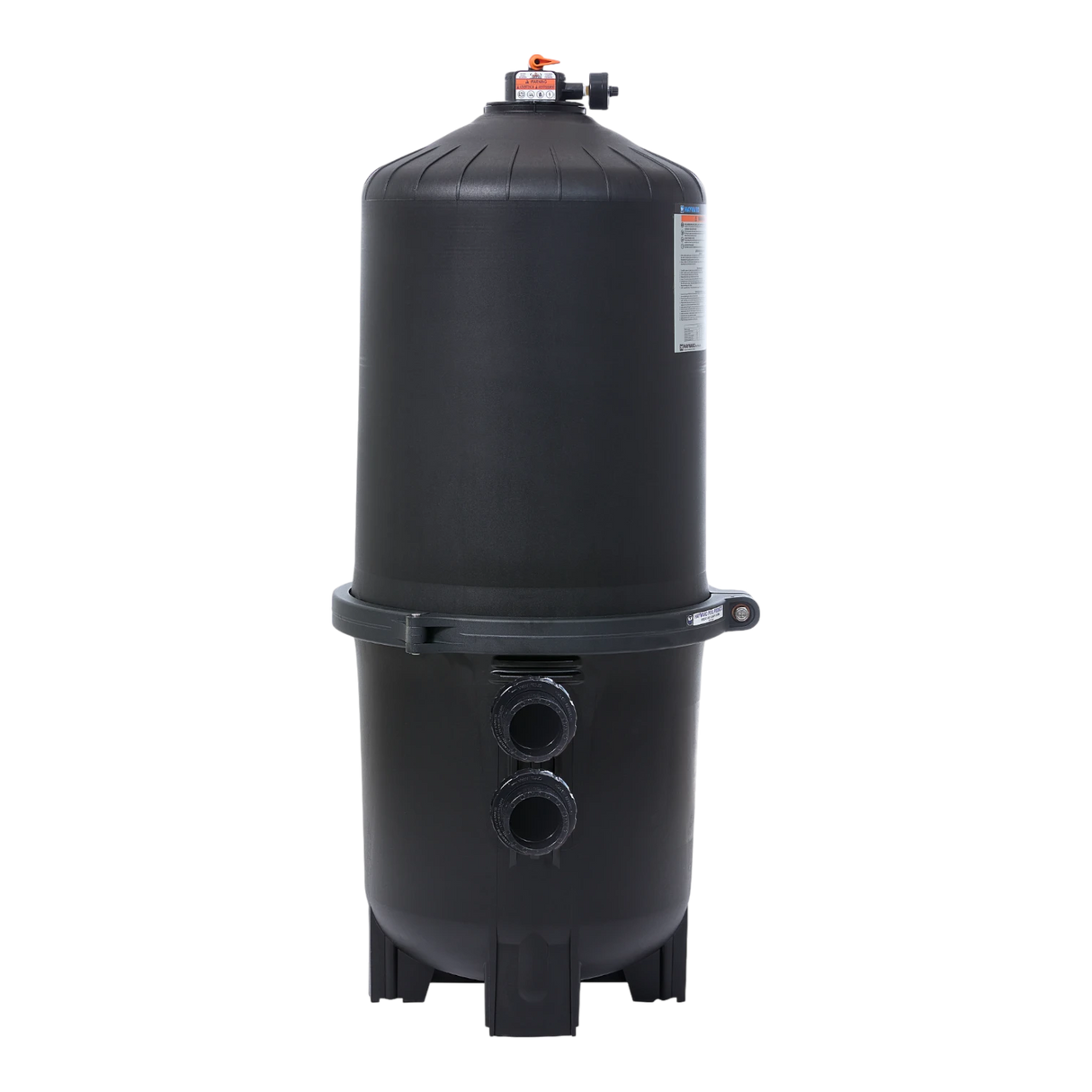

Hayward W3C4030 SwimClear Pool Cartridge Filter, 425 Sq Ft

SwimClear cartridge filters provide the most energy efficient flow and save up to 2,500 gallons of water per year by eliminating the need to backwash. SwimClear filters offer a choice of 225, 325, 425, 525 and 700 sq. ft. of heavy duty dirt holding capacity and extra-long filter cycle.

Features:

• Top manifold configuration provides excellent filtration and hydraulic performance for reduced cost of operation
• Cleanable cartridge elements eliminate the requirement for backwashing
• Filter tanks are made from the most durable materials to meet the demands of the toughest applications and environmental conditions
• High capacity, rapid release manual air relief valve bleeds air with a quick quarter turn of the lever
• Heavy-duty, tamper-proof, one piece flange clamp securely fastens tank top and bottom and allows quick access to all internal components

Cartridges Required	4
Design Flow Rate	150 gal/min
Filtration Area	425 square feet
Maximum Working Pressure	50 PSI
Product Height	34.5 inch
Product Width	18 inch
Side Clearance	18 inch
Tank Diameter	18 inch
Vertical Clearance	18 inch
Shipping Dimensions	23.1 x 24.6 x 41.8 inch
Product Weight	83 pound

EZ Pools is an authorized detailer of Hayward products. This product carries a 3-year warranty. View more information on Hayward's warranty program here.

Owner's Manual- SwimClear C4030
Warranty Card- SwimClear C4030

Shipping Dimensions	23.1 x 24.6 x 41.8 inch
Product Weight	83 pound

This product ships free via FedEx Home Delivery, with a signature required on delivery.
